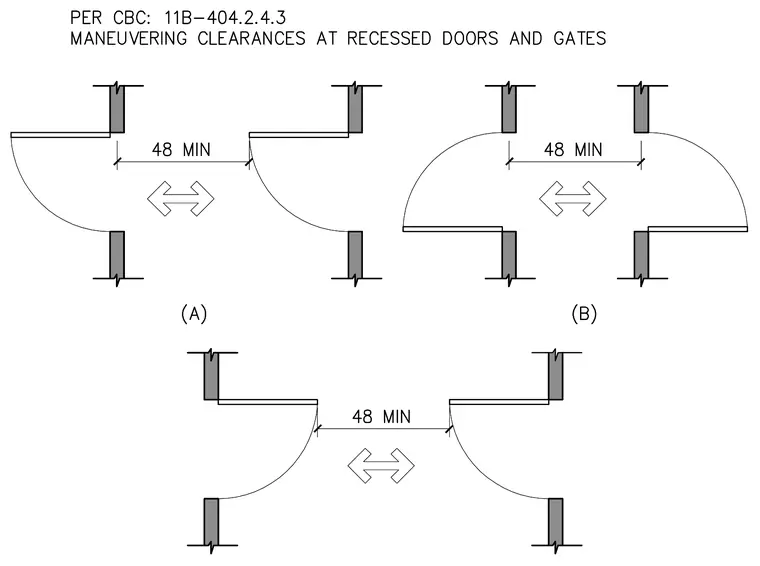

Recessed doors and gates require specific approach clearances with a minimum forty-eight-inch clearance dimension. The diagrams illustrate various push and pull approach configurations including front approach and hinge-side approach scenarios with doors swinging into and out of recesses.
