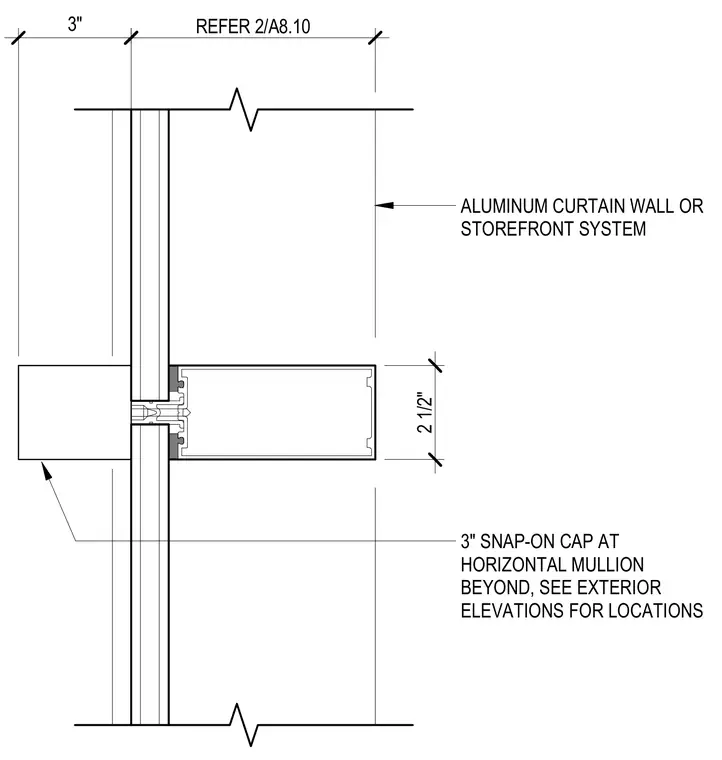

An architectural detail showing a 2-1/2 inch aluminum curtain wall or storefront system with a 3-inch snap-on cap at the horizontal mullion beyond. The vertical mullion profile integrates with glazing pockets and gaskets. Dimensions indicate a 3-inch projection for the applied cap assembly. Reference is made to exterior elevations for location coordination.
2 1/2" ALUMINUM CURTAIN WALL OR STOREFRONT SYSTEM 3" SNAP-ON CAP AT HORIZONTAL MULLION BEYOND, SEE EXTERIOR ELEVATIONS FOR LOCATIONS REFER 2/A8.10 3"
