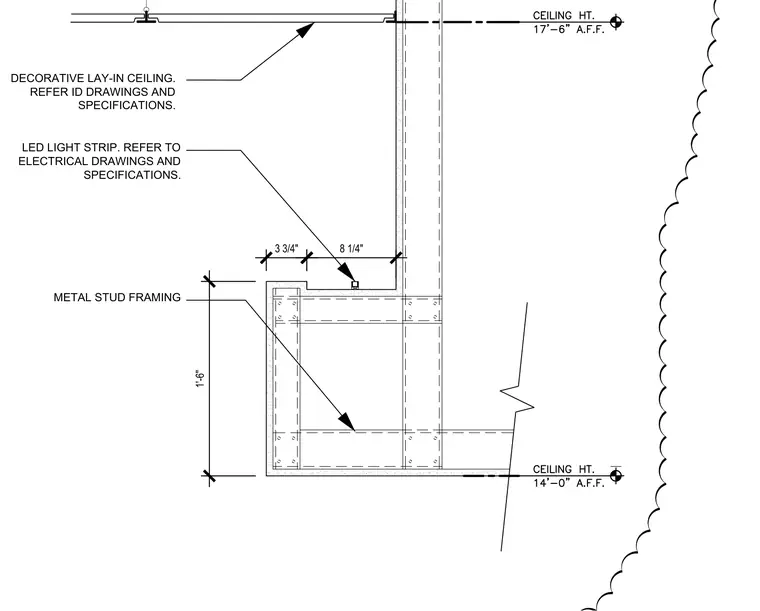

Cold-formed metal stud framing forms a stepped soffit detail dropping below the main ceiling height. A decorative lay-in ceiling meets the vertical wall assembly at a specified height. An LED light strip is integrated into the horizontal offset surface of the soffit framing. Dimensions indicate a soffit drop depth of one foot six inches with horizontal setbacks of three and three-quarter inches and eight and one-quarter inches.
LED LIGHT STRIP. REFER TO ELECTRICAL DRAWINGS AND SPECIFICATIONS. 1'-6" 3 3/4" 8 1/4" METAL STUD FRAMING DECORATIVE LAY-IN CEILING. REFER ID DRAWINGS AND SPECIFICATIONS.
