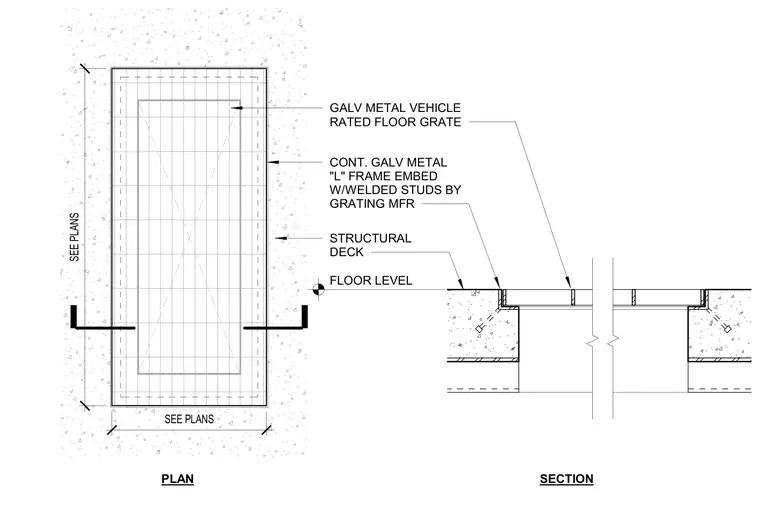

A galvanized metal vehicle-rated floor grate sits flush with the structural floor level. The grate rests within a continuous galvanized metal L-shape frame embed equipped with welded studs provided by the grating manufacturer. The frame is cast directly into the concrete structural deck to anchor the assembly.
SEE PLANS SEE PLANS FLOOR LEVEL PLAN SECTION GALV METAL VEHICLE RATED FLOOR GRATE CONT. GALV METAL "L" FRAME EMBED W/WELDED STUDS BY GRATING MFR STRUCTURAL DECK
