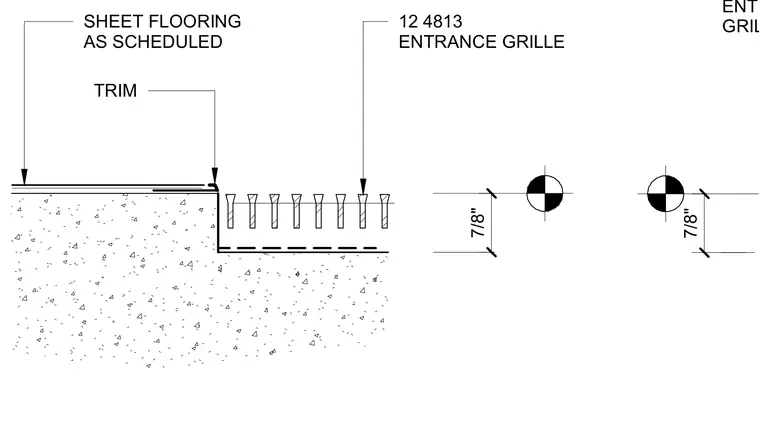

An entrance grille sits recessed into a concrete slab adjacent to scheduled sheet flooring. The assembly maintains a flush transition using a metal trim piece at the edge of the flooring material. The seven-eighths-inch entrance grille is supported directly within the formed recess of the concrete floor.
12 4813 ENTRANCE GRILLE 7/8" SHEET FLOORING AS SCHEDULED TRIM 7/8" ENTRANCE GRILLE
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
Start membership
