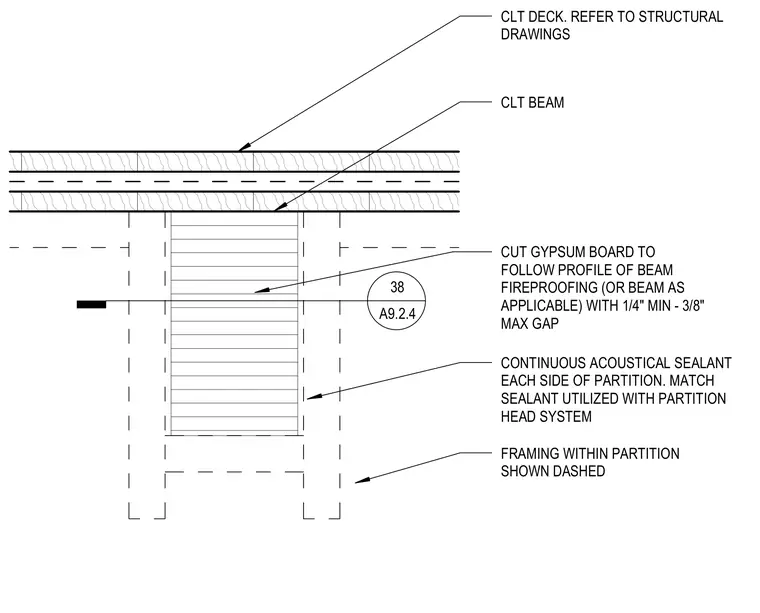

The gypsum board of the interior partition is cut to follow the profile of the cross-laminated timber beam and fireproofing with a one-quarter-inch minimum to three-eighths-inch maximum gap. Continuous acoustical sealant is applied to each side of the partition, matched to the sealant utilized with the partition head system. Framing within the partition is shown dashed, with the cross-laminated timber deck coordinated per the structural drawings.
CLT BEAM CLT DECK. REFER TO STRUCTURAL DRAWINGS FRAMING WITHIN PARTITION SHOWN DASHED CUT GYPSUM BOARD TO FOLLOW PROFILE OF BEAM FIREPROOFING (OR BEAM AS APPLICABLE) WITH 1/4" MIN - 3/8" MAX GAP CONTINUOUS ACOUSTICAL SEALANT EACH SIDE OF PARTITION. MATCH SEALANT UTILIZED WITH PARTITION HEAD SYSTEM 38 A9.2.4
