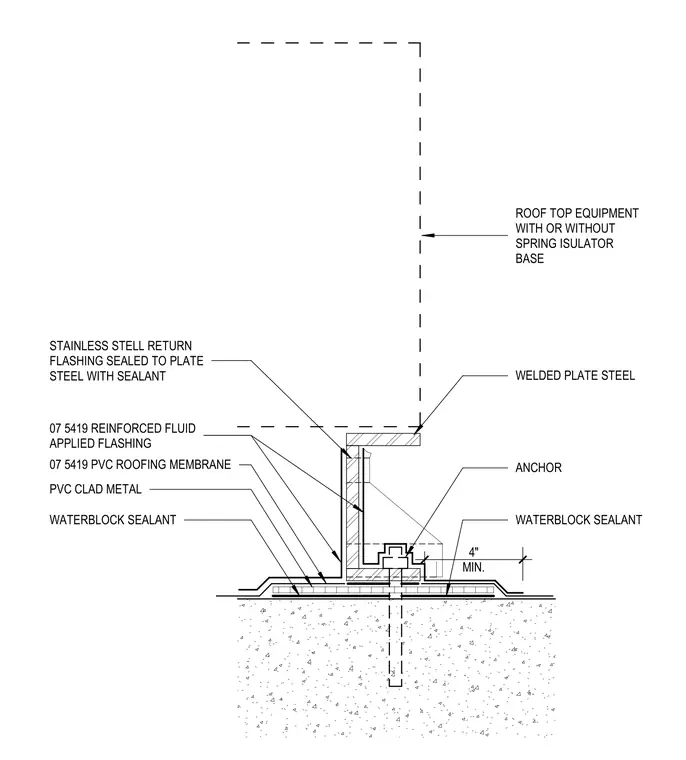

This assembly secures rooftop equipment, with or without a spring insulator base, to a structural substrate via an anchor and a welded steel plate. The base is waterproofed using a PVC roofing membrane and PVC-clad metal, which are integrated with a minimum four-inch stainless steel return flashing. Waterblock sealant is applied at the interface between the flashing and the steel plate to ensure a watertight seal. The system is finished with a reinforced fluid-applied flashing layer over the membrane transition.
Text on the drawing
MIN. 4" STAINLESS STELL RETURN FLASHING SEALED TO PLATE STEEL WITH SEALANT 07 5419 PVC ROOFING MEMBRANE 07 5419 REINFORCED FLUID APPLIED FLASHING PVC CLAD METAL WATERBLOCK SEALANT WATERBLOCK SEALANT ANCHOR WELDED PLATE STEEL ROOF TOP EQUIPMENT WITH OR WITHOUT SPRING ISULATOR BASE
