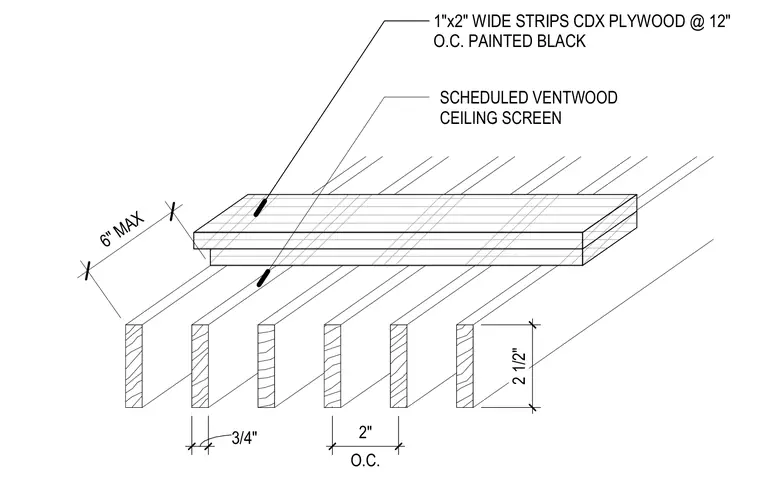

The Ventwood ceiling screen assembly consists of one-by-two-inch wide wood strips spaced at two inches on center over three-quarter-inch CDX plywood strips painted black. The vertical depth of the wood members measures two and a half inches with a maximum overall assembly depth of six inches. The individual slats are spaced at three-quarters of an inch apart.
O.C. 2" - 2 1/2" 3/4" 1"x2" WIDE STRIPS CDX PLYWOOD @ 12" O.C. PAINTED BLACK 6" MAX SCHEDULED VENTWOOD CEILING SCREEN
