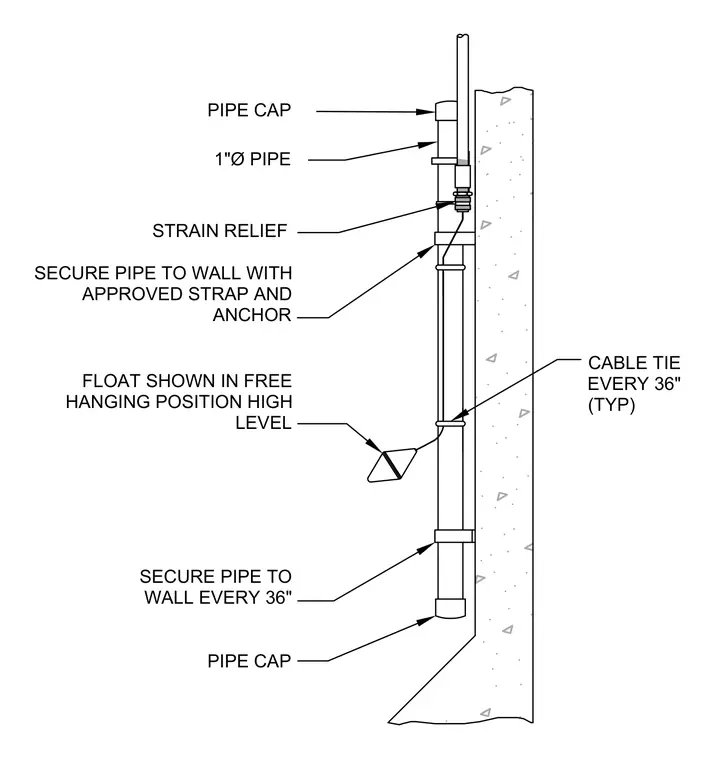

A one-inch diameter pipe is secured vertically to a wall using approved straps and anchors spaced every thirty-six inches. A strain relief connects to the pipe assembly, holding a float shown in a free-hanging high-level position. Cable ties secure the float cord to the pipe every thirty-six inches typically. Pipe caps are fitted at the top and bottom of the pipe assembly.
1"Ø PIPE PIPE CAP STRAIN RELIEF PIPE CAP FLOAT SHOWN IN FREE HANGING POSITION HIGH LEVEL SECURE PIPE TO WALL WITH APPROVED STRAP AND ANCHOR SECURE PIPE TO WALL EVERY 36" CABLE TIE EVERY 36" (TYP)
