Architectural · A-PFYCT

Accessible Parking Stall Signage

Elements

About this detail

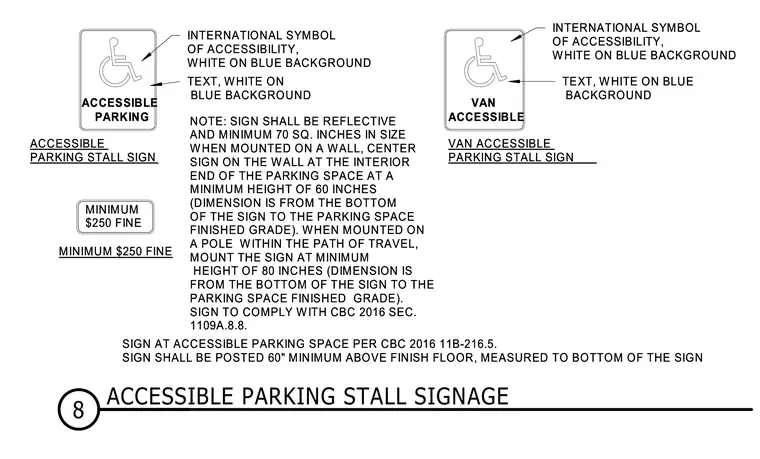

Accessible parking signage layouts comply with California Building Code requirements for standard and van-accessible spaces. Signs feature the international symbol of accessibility and required text on a blue background, with a minimum reflective size of 70 square inches. Wall-mounted signs are centered at the interior end of the parking space at a minimum height of 60 inches measured from the bottom of the sign to the finished grade. Pole-mounted signs within the path of travel are positioned at a minimum height of 80 inches above the finished grade.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
