Architectural · A-PFV23

Built-In Desk Countertop and Tackboard Detail

Materials

Elements

About this detail

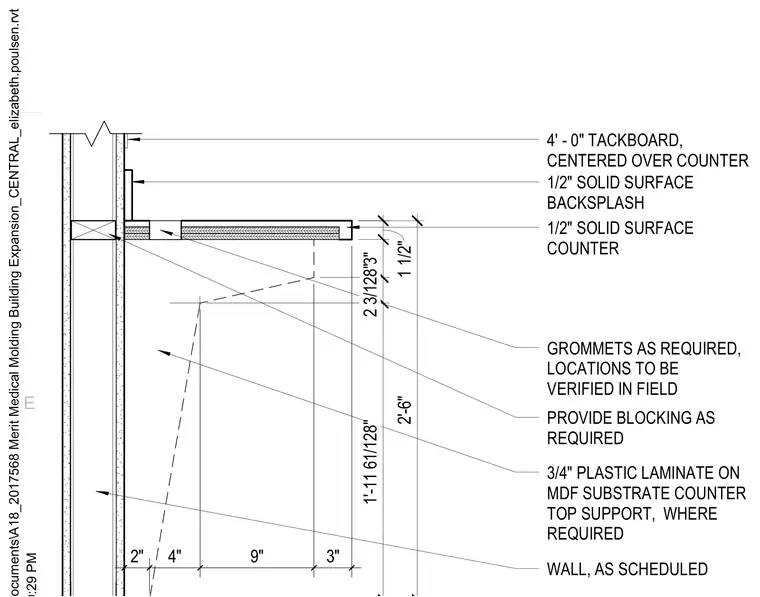

A wall-mounted desk assembly features a one-half-inch solid surface countertop supported by a three-quarter-inch plastic laminate on an medium-density fiberboard substrate with backing support provided as required. A matching one-half-inch solid surface backsplash rests against the wall, with cable grommets installed in the countertop at field-verified locations. A four-foot tackboard is centered on the wall above the counter. The wall construction is as scheduled, complete with required internal blocking.
