A-PFS8Z — ATRIUM STAIR - TRANSITION TO FLOOR LEVEL, TYP.

Architectural · A-PFS8Z

ATRIUM STAIR - TRANSITION TO FLOOR LEVEL, TYP.

Scale: 1 1/2" = 1'-0"
Units: imperial
Sheet: A5.12
Discipline: Architectural

Materials

Elements

Beams Connections / Plates Expansion / Control Joints Floors / Slabs Stairs

Connections

Expansion / Slip Connection Welded Connection

Text on the drawing

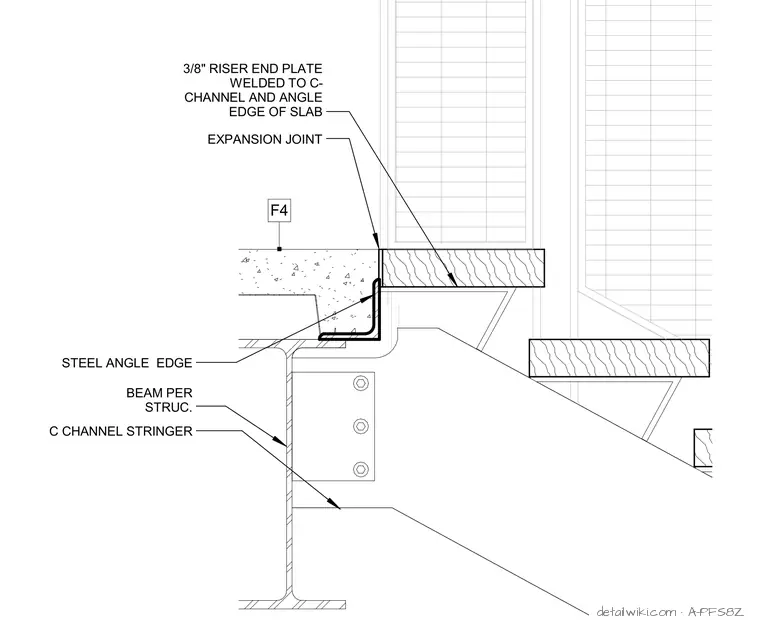

BEAM PER STRUC. C CHANNEL STRINGER 3/8" RISER END PLATE WELDED TO C- CHANNEL AND ANGLE EDGE OF SLAB STEEL ANGLE EDGE EXPANSION JOINT F4
