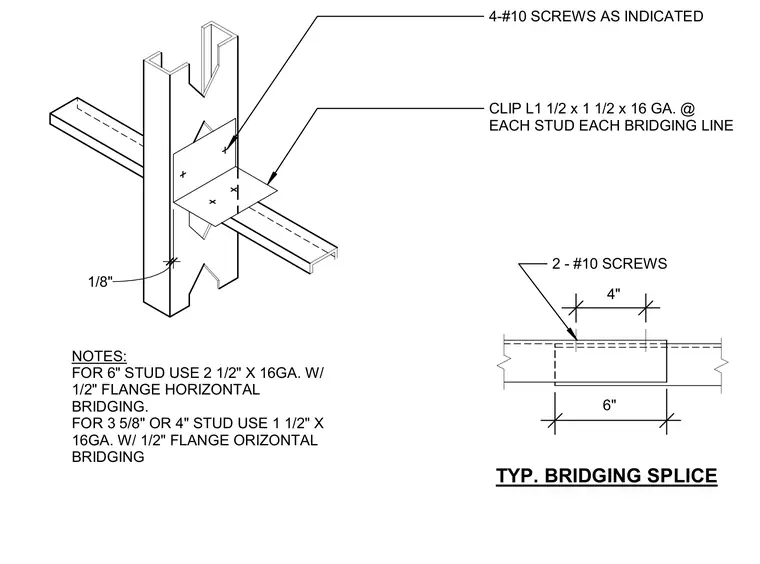

A 16-gauge clip angle measuring 1-1/2 inches by 1-1/2 inches connects the horizontal bridging to each metal stud at every bridging line, secured with four number-10 screws as indicated. For six-inch studs, the assembly uses a 2-1/2 inch by 16-gauge horizontal bridging member with a 1/2-inch flange. For 3-5/8 inch or four-inch studs, the assembly uses a 1-1/2 inch by 16-gauge horizontal bridging member with a 1/2-inch flange. A typical bridging splice utilizes two number-10 screws with a specified overlap.
1/8" NOTES: FOR 6" STUD USE 2 1/2" X 16GA. W/ 1/2" FLANGE HORIZONTAL BRIDGING. FOR 3 5/8" OR 4" STUD USE 1 1/2" X 16GA. W/ 1/2" FLANGE ORIZONTAL BRIDGING 4-#10 SCREWS AS INDICATED CLIP L1 1/2 x 1 1/2 x 16 GA. @ EACH STUD EACH BRIDGING LINE 2 - #10 SCREWS 4" 6" TYP. BRIDGING SPLICE
