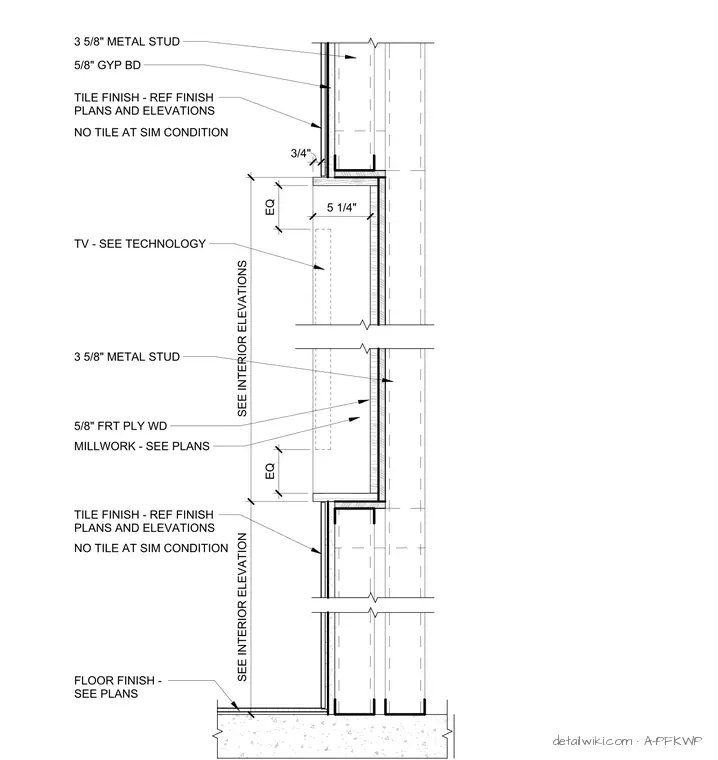

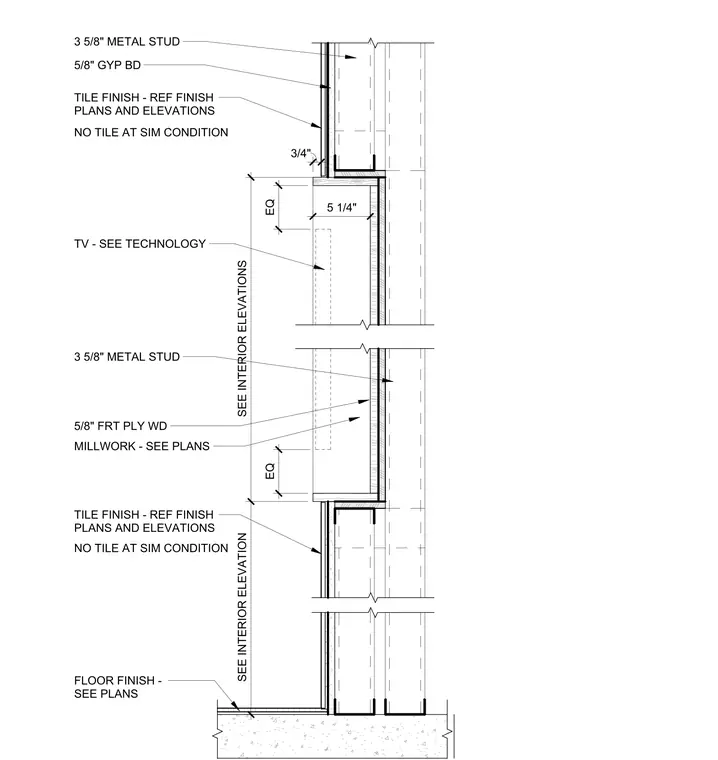

This assembly consists of a three-and-five-eighths-inch metal stud wall partition framed to create a recessed niche for technology equipment. The wall is finished with five-eighths-inch gypsum board, with tile finishes applied per the finish plans and elevations. The recessed niche interior is lined with five-eighths-inch fire-retardant plywood millwork, with a depth of five-and-one-quarter inches. The niche opening is framed with a three-quarter-inch return detail. The assembly terminates at the floor slab, with the floor finish specified per the architectural plans.
