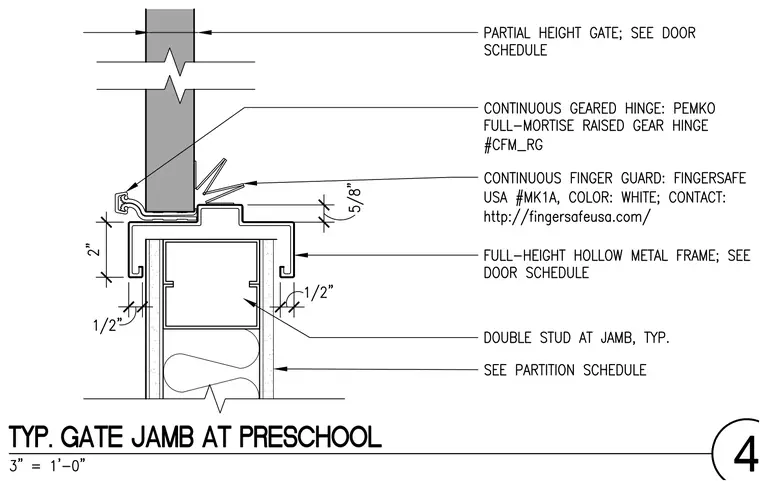

A partial-height gate connects to a full-height hollow metal frame over double studs at the jamb. The assembly incorporates a Pemko full-mortise raised continuous geared hinge and a Fingersafe USA continuous finger guard. Dimensions indicate a 2-inch frame depth with 1/2-inch clearances and a 5/8-inch clearance at the guard. Partition and door configurations are sized per their respective schedules.
