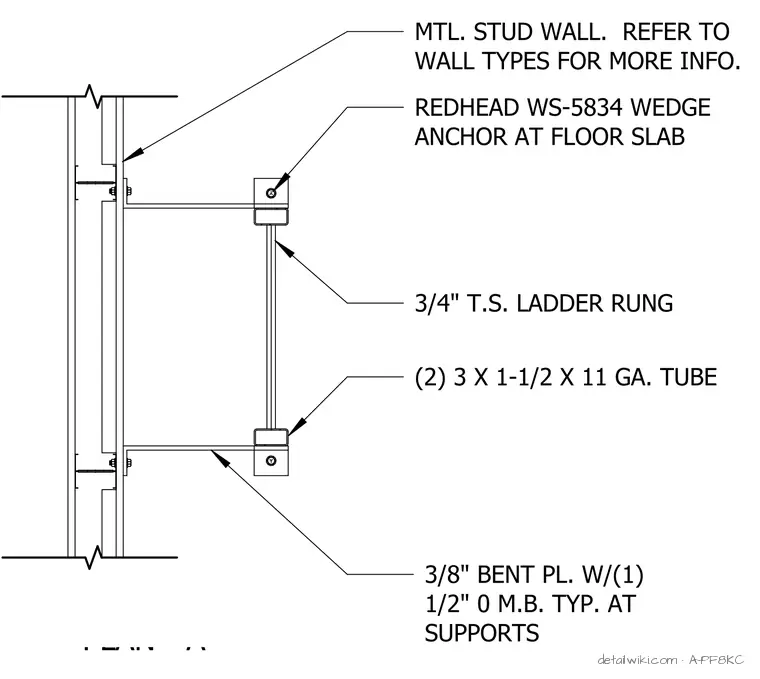

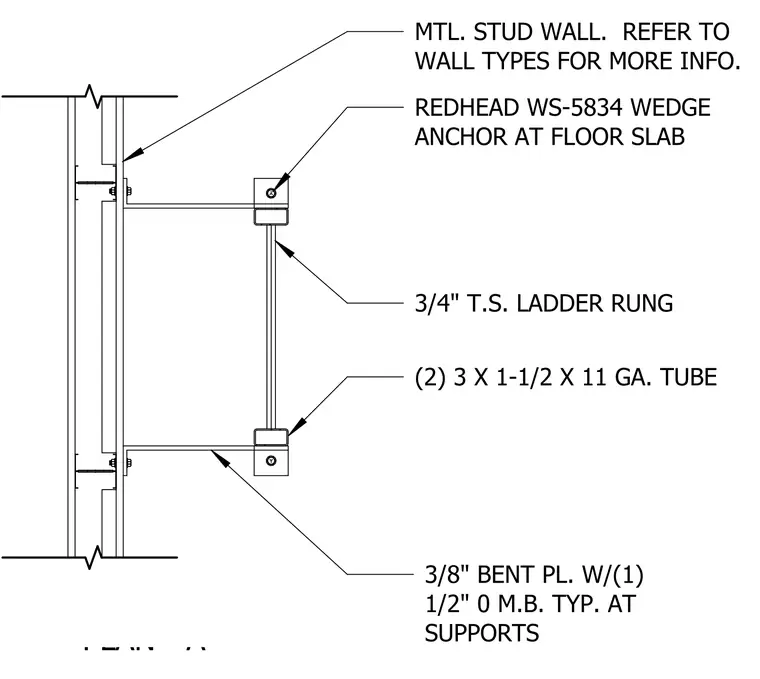

The ladder assembly consists of two 3-inch by 1-1/2-inch 11-gauge steel tubes serving as side rails, connected by 3/4-inch tubular steel rungs. The rails are supported by 3/8-inch bent steel plates, which are secured to the metal stud wall using one 1/2-inch diameter machine bolt at each support. The base of the assembly is anchored to the floor slab using Redhead WS-5834 wedge anchors. The metal stud wall construction should be verified against the project wall type specifications.
Text on the drawing
(2) 3 X 1-1/2 X 11 GA. TUBE 3/4" T.S. LADDER RUNG REDHEAD WS-5834 WEDGE ANCHOR AT FLOOR SLAB MTL. STUD WALL. REFER TO WALL TYPES FOR MORE INFO.
