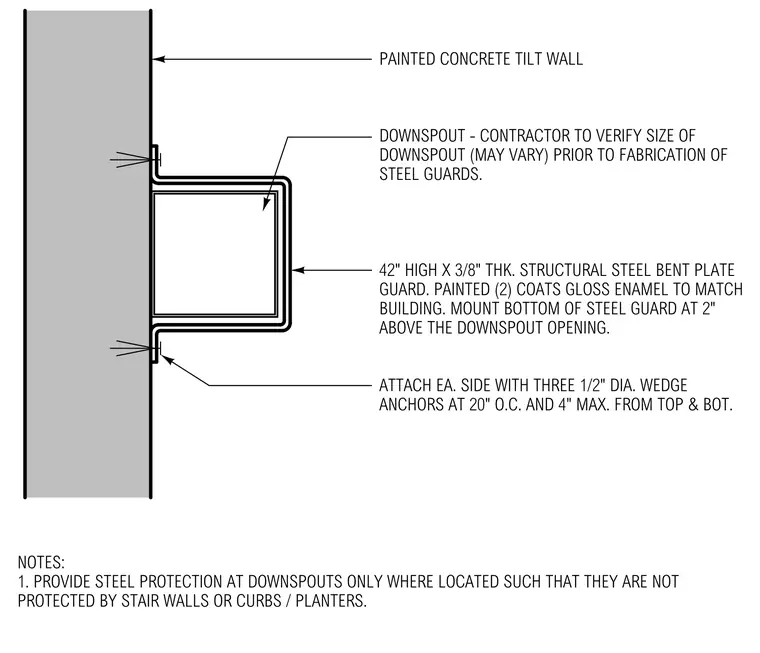

A forty-two-inch high by three-eighths-inch thick structural steel bent plate guard protects the exterior downspout mounted against a painted concrete tilt-up wall. The steel guard receives two coats of gloss enamel paint matched to the building. The bottom of the steel guard sits two inches above the downspout opening. Each side of the guard attaches to the concrete wall with three one-half-inch diameter wedge anchors spaced at twenty inches on center, positioned a maximum of four inches from the top and bottom.
PAINTED CONCRETE TILT WALL DOWNSPOUT - CONTRACTOR TO VERIFY SIZE OF DOWNSPOUT (MAY VARY) PRIOR TO FABRICATION OF STEEL GUARDS. 42" HIGH X 3/8" THK. STRUCTURAL STEEL BENT PLATE GUARD. PAINTED (2) COATS GLOSS ENAMEL TO MATCH BUILDING. MOUNT BOTTOM OF STEEL GUARD AT 2" ABOVE THE DOWNSPOUT OPENING. ATTACH EA. SIDE WITH THREE 1/2" DIA. WEDGE ANCHORS AT 20" O.C. AND 4" MAX. FROM TOP & BOT. NOTES: 1. PROVIDE STEEL PROTECTION AT DOWNSPOUTS ONLY WHERE LOCATED SUCH THAT THEY ARE NOT PROTECTED BY STAIR WALLS OR CURBS / PLANTERS.
