Hollow Metal Door Jamb Details at Partition

Materials

Elements

About this detail

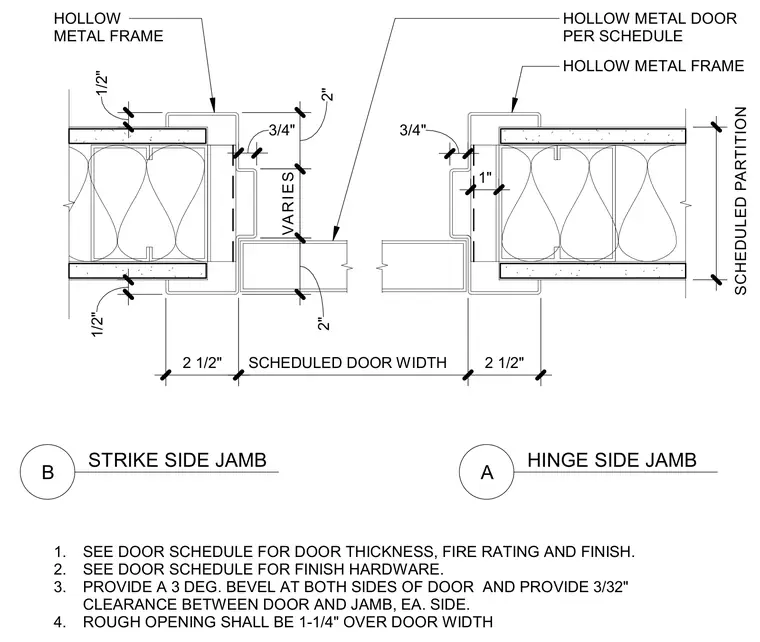

Hollow metal door frame conditions occur at both the strike side and hinge side jambs within a scheduled partition. The frame anchors into the partition framing with specific dimensional clearances, maintaining a scheduled door width between jambs. A three-degree bevel is provided at both sides of the door with a three-thirty-second inch clearance between the door and jamb on each side. The rough opening is sized one and one-quarter inches over the scheduled door width, while door thickness, fire rating, finish, and finish hardware are coordinated per the door schedule.
