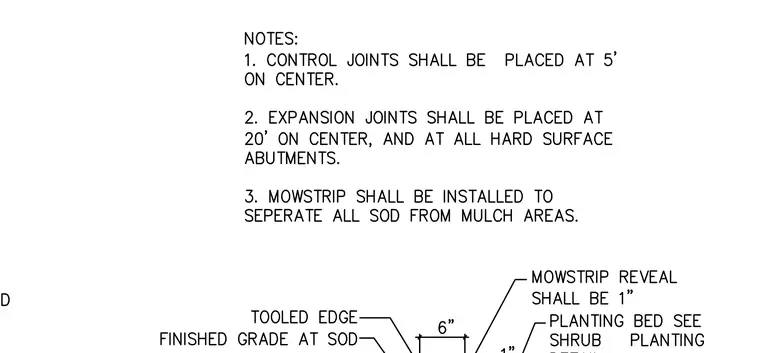

A concrete mowstrip is installed to separate all sod from mulch areas with a one-inch reveal at the planting bed. Control joints are placed at five feet on center, and expansion joints are placed at twenty feet on center and at all hard surface abutments. The assembly features a tooled edge with finished grade at the sod.
NOTES: 1. CONTROL JOINTS SHALL BE PLACED AT 5’ ON CENTER. 2. EXPANSION JOINTS SHALL BE PLACED AT 20’ ON CENTER, AND AT ALL HARD SURFACE ABUTMENTS. 3. MOWSTRIP SHALL BE INSTALLED TO SEPERATE ALL SOD FROM MULCH AREAS. MOWSTRIP REVEAL SHALL BE 1” PLANTING BED SEE SHRUB PLANTING SPECIFIED TOOLED EDGE FINISHED GRADE AT SOD
