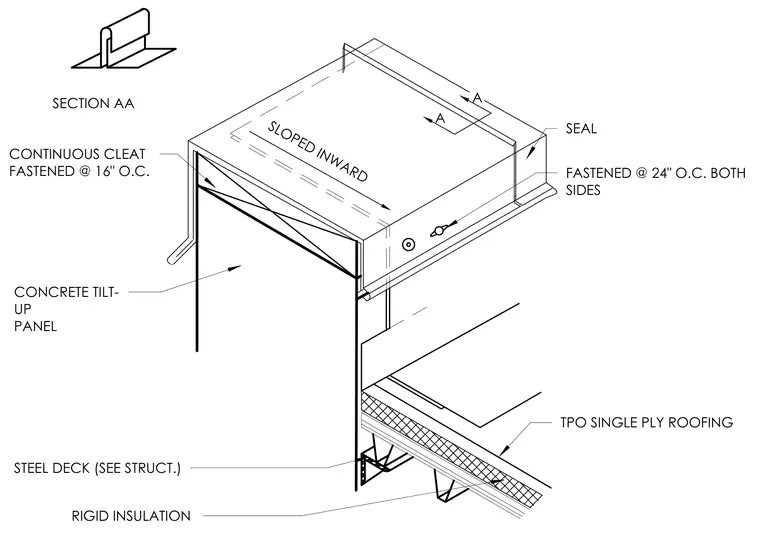

This isometric detail shows a metal roof coping cap sloped inward toward the roof over a concrete tilt-up wall panel. The coping is secured with a continuous cleat fastened at sixteen inches on center and sealed along the edges. Single-ply TPO roofing membrane covers the roof deck with rigid insulation below, tied into the steel deck assembly as sized per structural drawings. The coping assembly maintains drainage toward the interior while protecting the top of the wall against water infiltration.
SEAL TPO SINGLE PLY ROOFING FASTENED @ 24" O.C. BOTH SIDES RIGID INSULATION A A SLOPED INWARD CONTINUOUS CLEAT FASTENED @ 16" O.C. SECTION AA STEEL DECK (SEE STRUCT.) CONCRETE TILT- UP PANEL
