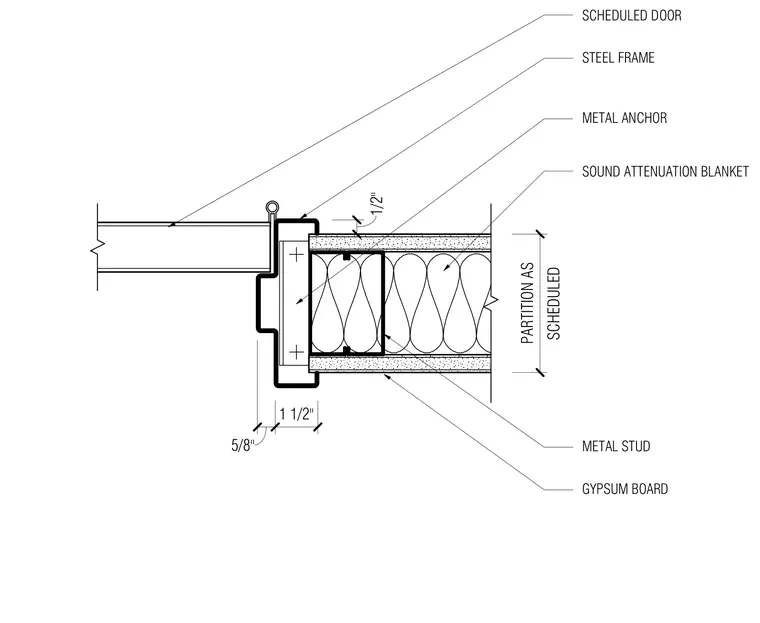

A hollow metal steel frame connects to a scheduled metal stud partition using metal anchors. The partition framing consists of metal studs filled with a sound attenuation blanket and faced on both sides with gypsum board. The frame assembly accommodates a scheduled door and maintains specified clearance dimensions.
1/2" 5/8" 1 1/2" SCHEDULED PARTITION AS STEEL FRAME METAL ANCHOR METAL STUD GYPSUM BOARD SOUND ATTENUATION BLANKET SCHEDULED DOOR
