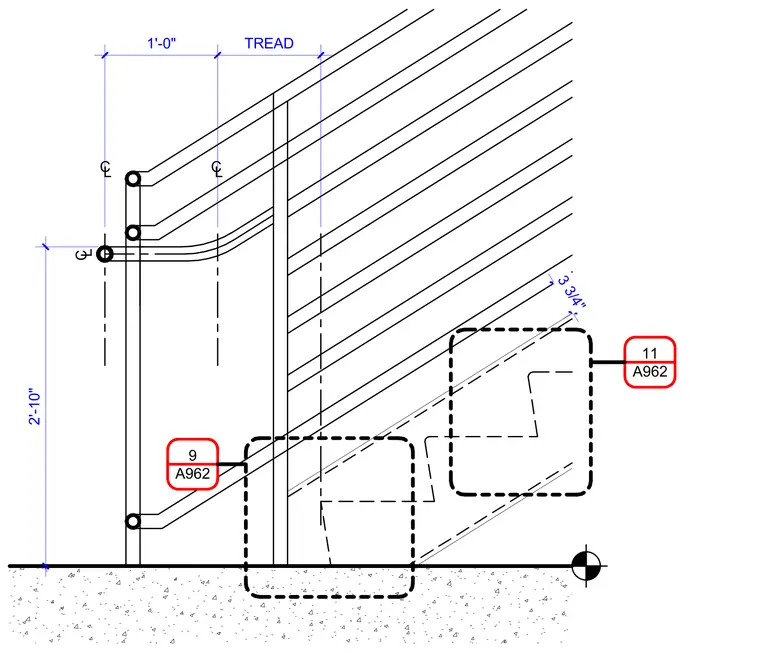

A stair guardrail assembly mounts to the concrete slab at the bottom landing with vertical posts supporting intermediate horizontal rails. The guardrail height is dimensioned at two feet ten inches to the centerline of the intermediate rail, with post centerlines spaced one foot apart. Detail callouts reference additional connections on sheet A962.
