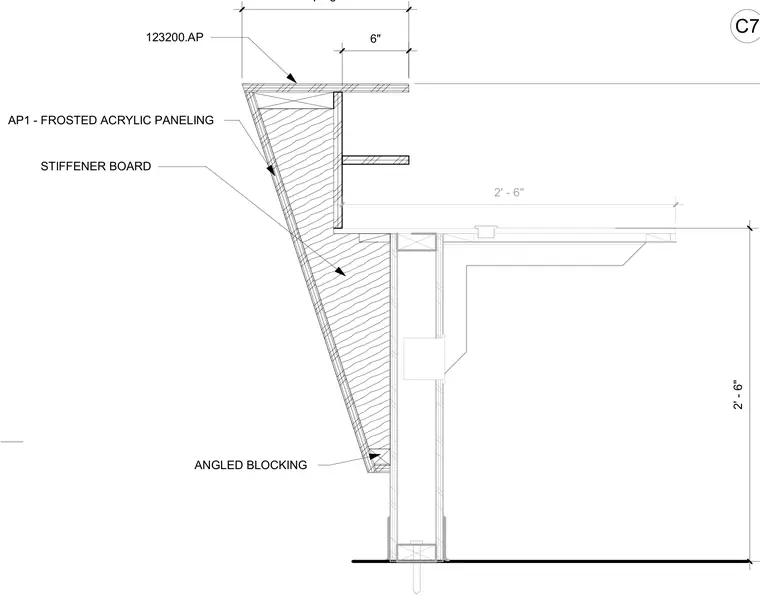

An administrative reception desk transaction counter assembly features frosted acrylic paneling supported by stiffener boards and angled wood blocking. The transaction top extends over a two-foot-six-inch counter height supported by framed partitions and internal blocking. The exterior face is finished with frosted acrylic paneling designated as AP1 over structural stiffeners.
2' - 6" 2' - 6" AP1 - FROSTED ACRYLIC PANELING 123200.AP STIFFENER BOARD ANGLED BLOCKING 1' - 3" 6" C7
