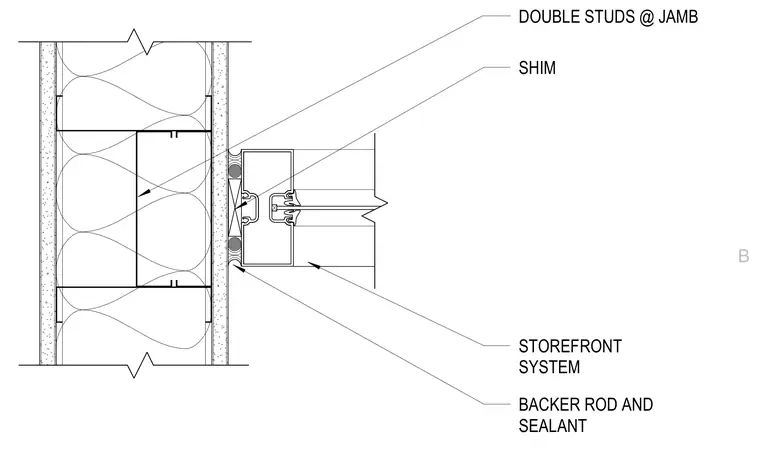

A storefront system is tied into a double stud wall assembly at the jamb. Shims adjust the fit between the aluminum storefront frame and the steel studs, while backer rod and sealant seal the joint at the interior and exterior interfaces.
