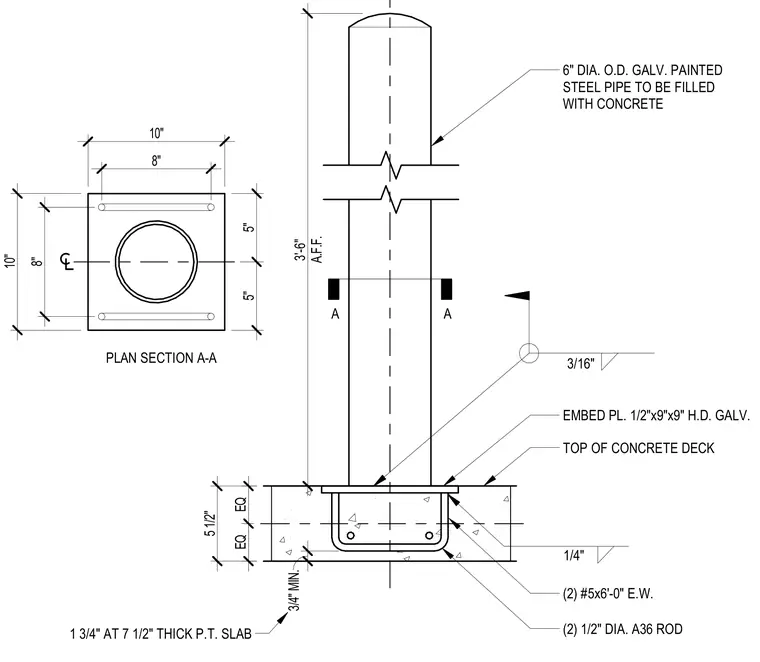

A six-inch outside diameter galvanized and painted steel pipe is filled with concrete and anchored to a concrete slab. The base secures to a half-inch by nine-inch by nine-inch hot-dip galvanized embed plate with two half-inch diameter A36 rods welded with a three-sixteenths inch fillet weld. The assembly bears on a seven-and-a-half inch thick post-tensioned slab reinforced with two number five bars at six feet zero inches each way and a one-quarter inch weld at the embedded plate.
6" DIA. O.D. GALV. PAINTED STEEL PIPE TO BE FILLED WITH CONCRETE EMBED PL. 1/2"x9"x9" H.D. GALV. (2) 1/2" DIA. A36 ROD 1/4" (2) #5x6'-0" E.W. A A PLAN SECTION A-A TOP OF CONCRETE DECK 10" 10" 5" 5" 8" 8" A.F.F. 3'-6" 3/16" 5 1/2" EQ EQ 3/4" MIN. 1 3/4" AT 7 1/2" THICK P.T. SLAB
