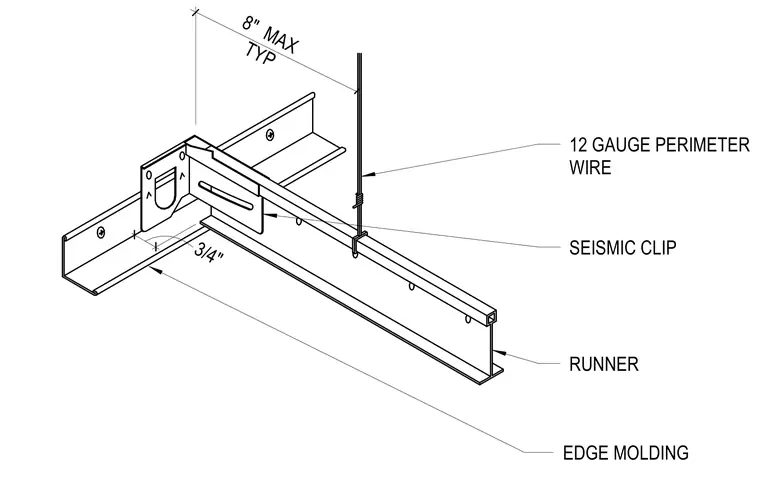

A suspended ceiling runner is supported by a twelve-gauge perimeter wire tied to a seismic clip at the edge molding. The edge molding is spaced three-quarters of an inch from the wall assembly. The twelve-gauge perimeter wire is spaced at eight inches maximum typical.
