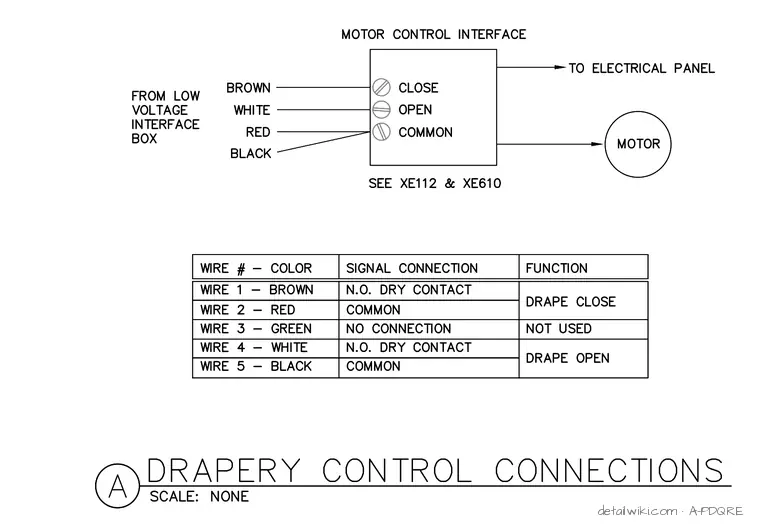

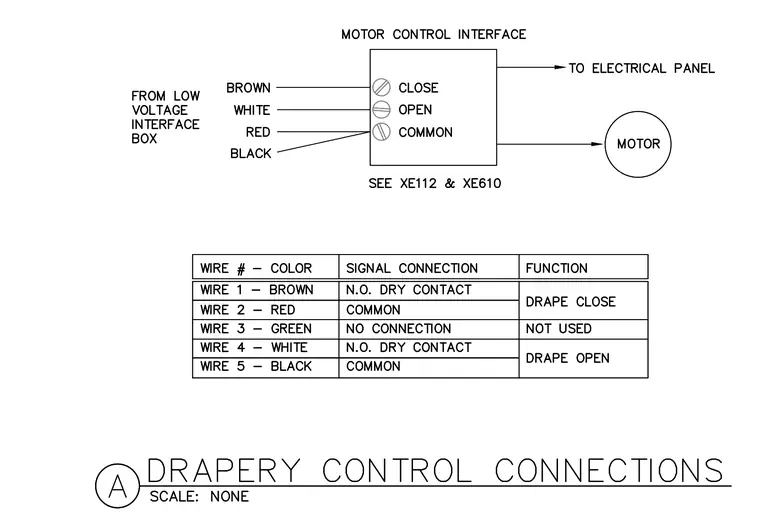

Wiring connections route from the low voltage interface box to the motor control interface with brown, white, red, and black conductors. The motor control interface links to the electrical panel and the motor. A wiring schedule correlates wire numbers and colors with signal connections and functions for drape close and open operations.
