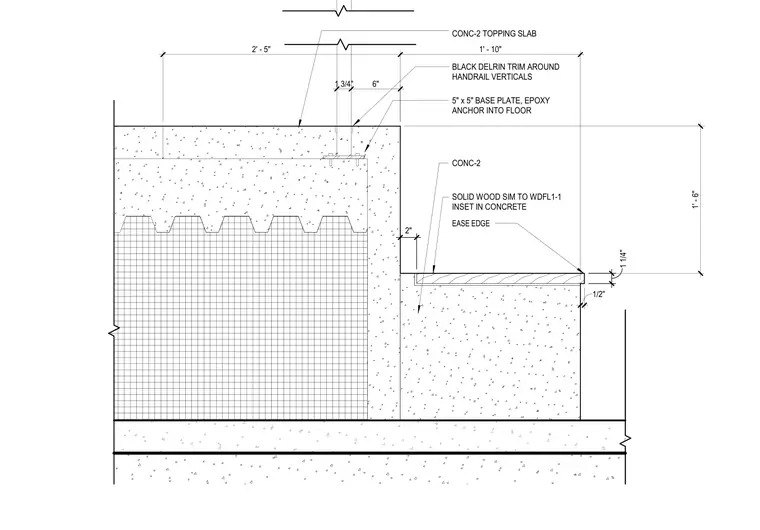

A 2-inch concrete topping slab is poured over a metal deck floor assembly. A 5-inch by 5-inch base plate with epoxy anchors secures the handrail verticals into the floor slab, wrapped with black Delrin trim. A solid wood inset, similar to WDFL1-1, is embedded into the lower concrete step with an eased edge.
1 ' - 6 " 1 / 2 " 1 3 / 4 " 6 " 2 ' - 5 " 1 ' - 1 0 " 1 1 / 4 " 5" x 5" BASE PLATE, EPOXY ANCHOR INTO FLOOR BLACK DELRIN TRIM AROUND HANDRAIL VERTICALS CONC-2 SOLID WOOD SIM TO WDFL1-1 INSET IN CONCRETE 2 " CONC-2 TOPPING SLAB E A S E E D G E
