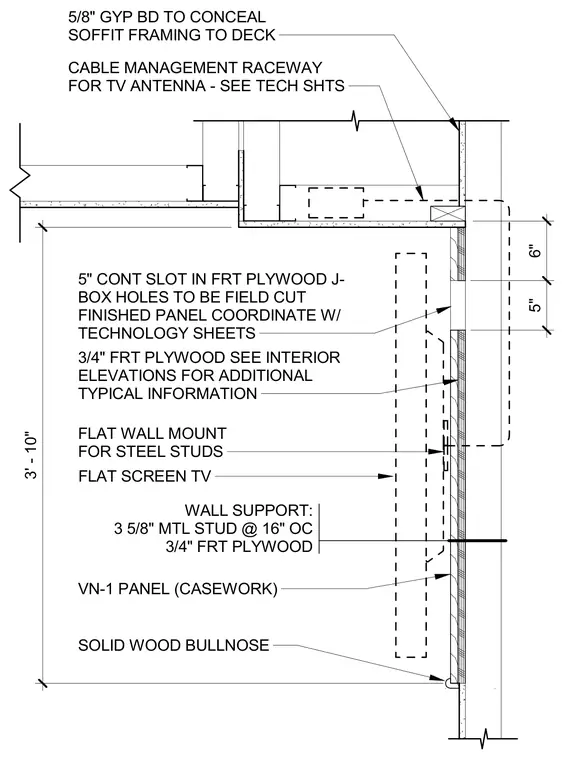

A flat screen television is secured to a wall support framed with 3-5/8 inch metal studs at 16 inches on center backed by 3/4 inch fire-retardant treated plywood and finished with a VN-1 casework panel and solid wood bullnose. A flat wall mount for steel studs connects the television to the wall assembly. The soffit framing is concealed with 5/8 inch gypsum board extending to the deck and includes a cable management raceway for the television antenna. A continuous 5-inch slot is provided in the fire-retardant treated plywood with junction box holes field-cut to coordinate with technology sheets.
3/4" FRT PLYWOOD SEE INTERIOR ELEVATIONS FOR ADDITIONAL TYPICAL INFORMATION 5" CONT SLOT IN FRT PLYWOOD J- BOX HOLES TO BE FIELD CUT FINISHED PANEL COORDINATE W/ TECHNOLOGY SHEETS FLAT WALL MOUNT FOR STEEL STUDS FLAT SCREEN TV WALL SUPPORT: 3 5/8" MTL STUD @ 16" OC 3/4" FRT PLYWOOD SOLID WOOD BULLNOSE VN-1 PANEL (CASEWORK) 3' - 10" 5/8" GYP BD TO CONCEAL SOFFIT FRAMING TO DECK CABLE MANAGEMENT RACEWAY FOR TV ANTENNA - SEE TECH SHTS 5" 6"
