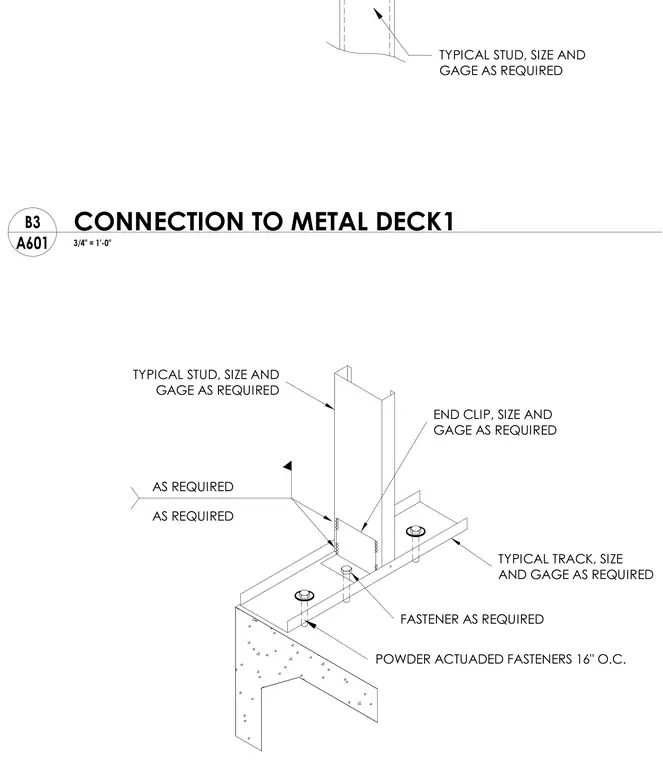

A cold-formed steel stud connects to a bottom track of size and gauge as required. The track anchors to the metal deck using powder-actuated fasteners spaced at 16 inches on center. An end clip of size and gauge as required secures the stud to the track.
TYPICAL STUD, SIZE AND GAGE AS REQUIRED AS REQUIRED AS REQUIRED TYPICAL STUD, SIZE AND GAGE AS REQUIRED END CLIP, SIZE AND GAGE AS REQUIRED TYPICAL TRACK, SIZE AND GAGE AS REQUIRED FASTENER AS REQUIRED POWDER ACTUADED FASTENERS 16" O.C. 3/4" = 1'-0" A601 B3 CONNECTION TO METAL DECK1
