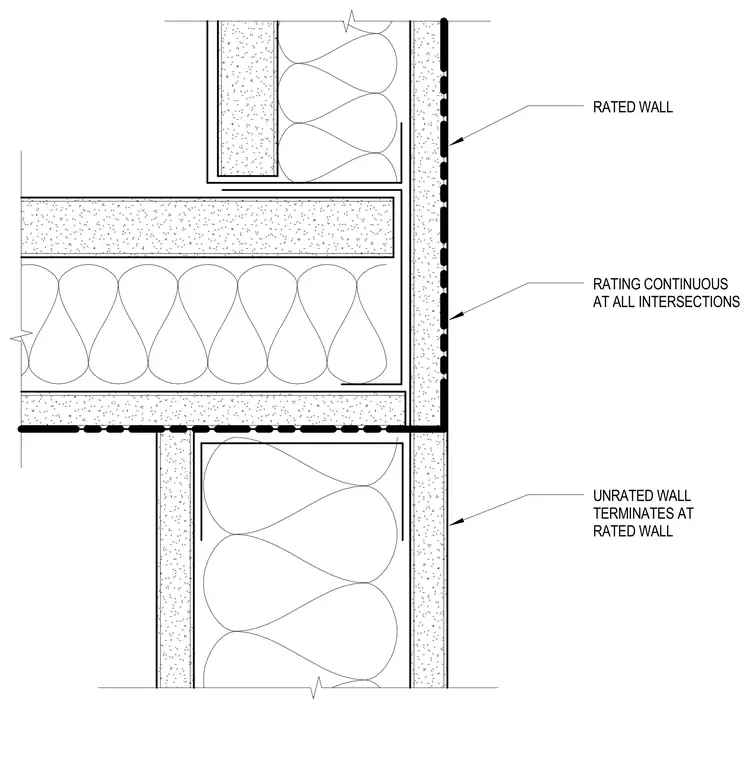

Framing and gypsum board configuration at the intersection of a rated wall and an unrated wall. The fire-rated wall assembly maintains continuity across all intersections, while the unrated partition wall terminates directly against the face of the rated wall.
RATED WALL RATING CONTINUOUS AT ALL INTERSECTIONS UNRATED WALL TERMINATES AT RATED WALL
