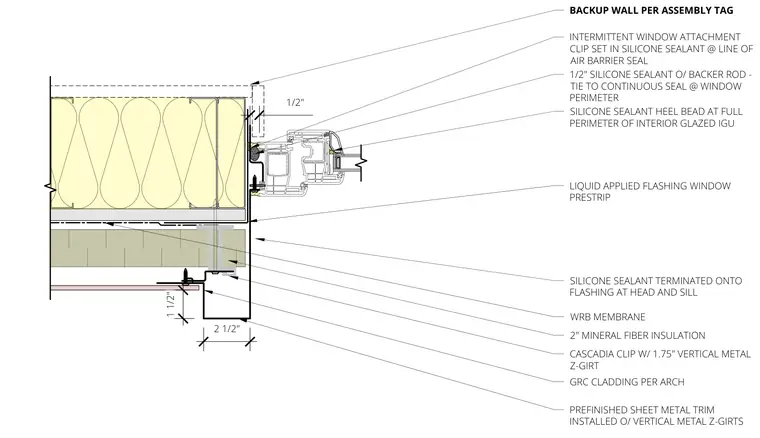

This window jamb detail shows the transition from a backup wall assembly to a glazed window unit. The backup wall receives a weather-resistive barrier membrane, liquid-applied flashing prestrip, and two inches of mineral fiber insulation supported by Cascadia clips with one-and-three-quarter-inch vertical metal Z-girts. Glass-fiber reinforced concrete cladding is installed over prefinished sheet metal trim, which runs over the vertical metal Z-girts. The window frame is secured via intermittent window attachment clips set in silicone sealant at the line of the air barrier seal. A one-half-inch silicone sealant joint with a backer rod ties into the continuous seal around the window perimeter, while a silicone sealant heel bead runs the full perimeter of the interior glazed insulated glass unit. Silicone sealant is terminated onto flashing at the head and sill.
8001 8095 7134 8727 Ix=2.20 8727 Ix=2.20 1/2" 2 1/2" LIQUID APPLIED FLASHING WINDOW PRESTRIP WRB MEMBRANE 2" MINERAL FIBER INSULATION CASCADIA CLIP W/ 1.75" VERTICAL METAL Z-GIRT GRC CLADDING PER ARCH PREFINISHED SHEET METAL TRIM INSTALLED O/ VERTICAL METAL Z-GIRTS 1/2" SILICONE SEALANT O/ BACKER ROD - TIE TO CONTINUOUS SEAL @ WINDOW PERIMETER BACKUP WALL PER ASSEMBLY TAG SILICONE SEALANT HEEL BEAD AT FULL PERIMETER OF INTERIOR GLAZED IGU INTERMITTENT WINDOW ATTACHMENT CLIP SET IN SILICONE SEALANT @ LINE OF AIR BARRIER SEAL SILICONE SEALANT TERMINATED ONTO FLASHING AT HEAD AND SILL 1 1/2"
