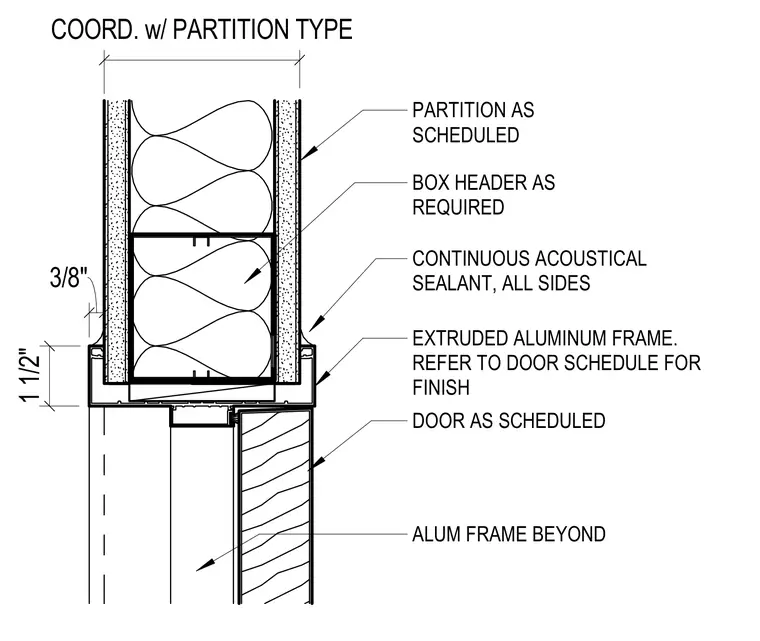

An extruded aluminum frame interfaces with the partition as scheduled and a door as scheduled. A box header is installed as required and coordinated with the partition type. Continuous acoustical sealant is applied on all sides of the frame junction. An aluminum frame is visible beyond.
PARTITION AS SCHEDULED EXTRUDED ALUMINUM FRAME. REFER TO DOOR SCHEDULE FOR FINISH DOOR AS SCHEDULED ALUM FRAME BEYOND CONTINUOUS ACOUSTICAL SEALANT, ALL SIDES BOX HEADER AS REQUIRED COORD. w/ PARTITION TYPE 1 1/2" 3/8"
