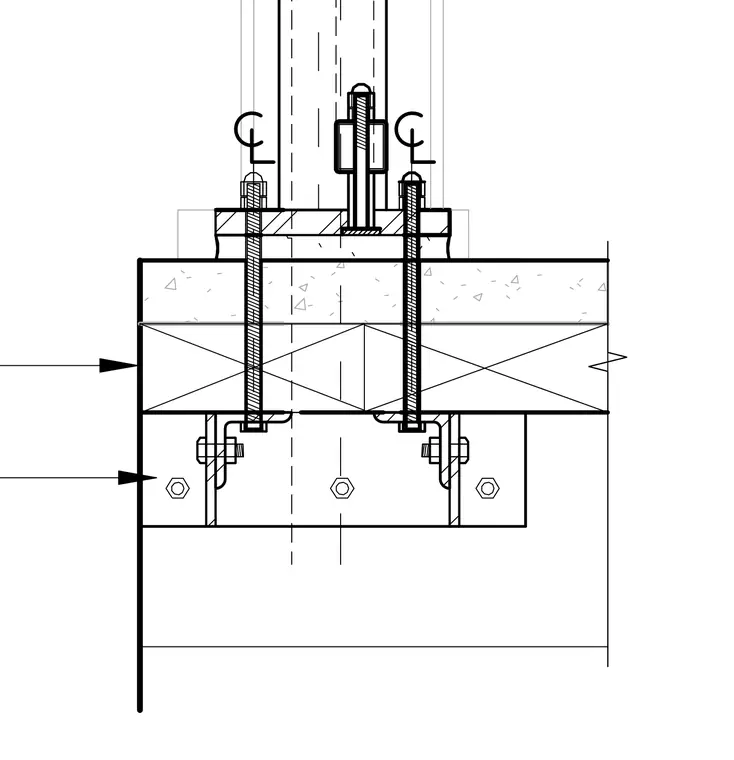

A vertical guardrail post base plate is secured with through-bolts that extend down through the concrete topping and underlying structural framing members. Below the framing, backing angles and additional bolted connections anchor the assembly to the existing pier structure.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
