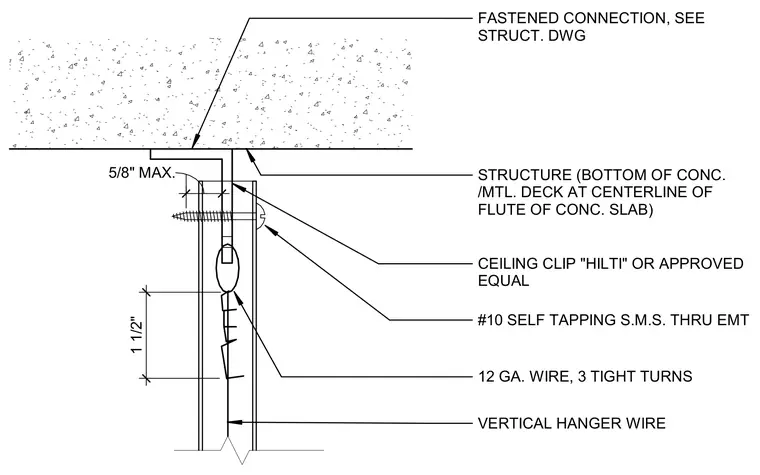

This compression strut detail connects a suspended ceiling hanger wire to the underside of a concrete slab or metal deck. A ceiling clip by Hilti or approved equal fastens directly to the structural slab or deck at the centerline of the flute. A vertical hanger wire ties into the assembly with twelve-gauge wire secured by three tight turns. A number ten self-tapping sheet metal screw fastens through electrical metallic tubing with a maximum five-eighths inch spacing.
FASTENED CONNECTION, SEE STRUCT. DWG STRUCTURE (BOTTOM OF CONC. /MTL. DECK AT CENTERLINE OF FLUTE OF CONC. SLAB) CEILING CLIP "HILTI" OR APPROVED EQUAL #10 SELF TAPPING S.M.S. THRU EMT 12 GA. WIRE, 3 TIGHT TURNS VERTICAL HANGER WIRE 1 1/2" 5/8" MAX.
