Architectural · A-PCKPE

Millwork Reception Desk Section with Acrylic Feature Panel

Materials

Elements

Doors Millwork / Casework Roof / Floor Openings

About this detail

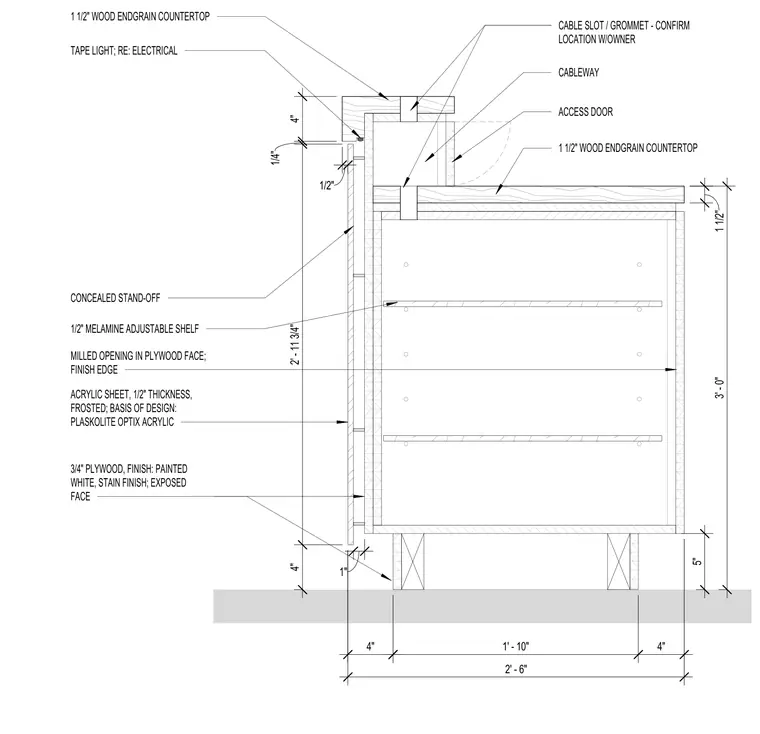

A typical millwork reception desk assembly is constructed with a 3/4-inch plywood sub-structure, finished with a painted white and stain finish on the exposed face. A 1 1/2-inch thick wood endgrain countertop caps the unit, while a secondary upper transaction counter is integrated with concealed stand-offs and illuminated by electrical tape lighting. The front vertical elevation is clad with a 1/2-inch thick frosted acrylic sheet based on Plaskolite Optix acrylic, mounted with concealed stand-offs over a milled opening in the plywood face. Interior storage includes 1/2-inch melamine adjustable shelves, a cableway, access doors, and cable slots or grommets positioned per owner confirmation. The entire casework sits on wood blocking elevated above the finished floor.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
