The assembly features a fourth floor level transition at 39'-0" elevation, incorporating a sloped lightweight concrete topping applied over a waterproofing membrane and drainage system on the exterior side. The concrete and metal deck construction slopes toward a drain to manage moisture. An elastomeric coating is applied at the floor surface. The structural support consists of a steel beam carrying concrete over metal deck, configured to accommodate the sloped topping.

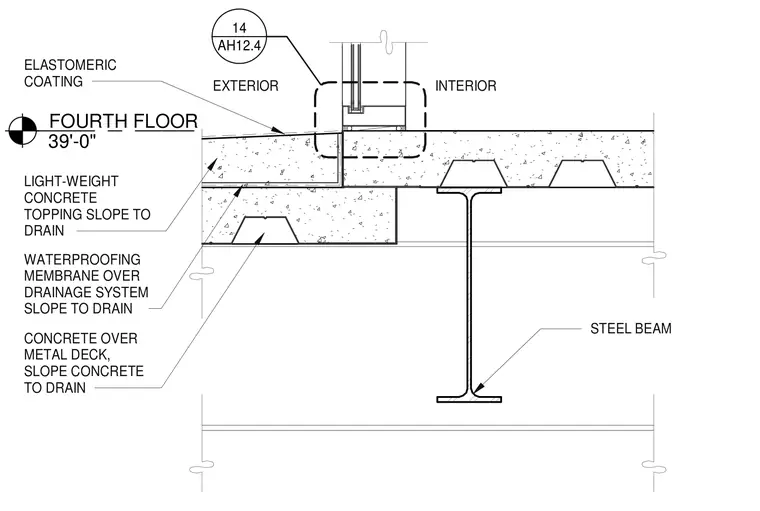

FOURTH FLOOR 39'-0" AH12.4 14 EXTERIOR INTERIOR STEEL BEAM ELASTOMERIC COATING LIGHT-WEIGHT CONCRETE TOPPING SLOPE TO DRAIN WATERPROOFING MEMBRANE OVER DRAINAGE SYSTEM SLOPE TO DRAIN CONCRETE OVER METAL DECK, SLOPE CONCRETE TO DRAIN
