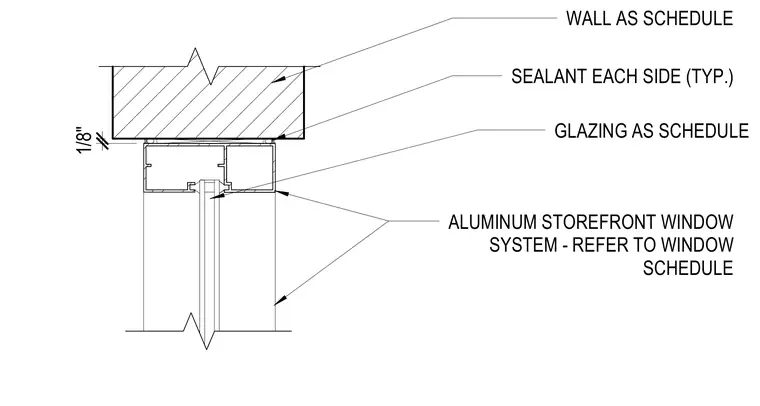

An aluminum storefront window system is set below the structural wall construction with an eighth-inch clearance gap. Sealant is applied to each side at the head joint to ensure weatherproofing. Glazing and wall types are coordinated per the schedules.
SEALANT EACH SIDE (TYP.) ALUMINUM STOREFRONT WINDOW SYSTEM - REFER TO WINDOW SCHEDULE GLAZING AS SCHEDULE 1/8" WALL AS SCHEDULE
