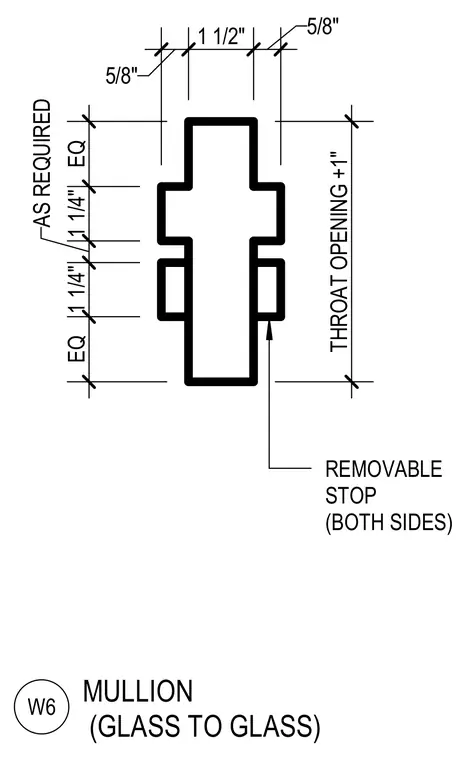

A W6 mullion profile accommodates glass-to-glass glazing with removable stops installed on both sides. Dimensions include a throat opening plus one inch, equal spacing as required, one-and-one-quarter-inch segments, one-and-one-half-inch widths, and five-eighths-inch offsets.
THROAT OPENING +1" EQ 1 1/4" AS REQUIRED 1 1/4" EQ 5/8" 1 1/2" 5/8" REMOVABLE STOP (BOTH SIDES) W6 MULLION (GLASS TO GLASS)
