A 3-5/8 inch by 18-gauge minimum cold-formed steel stud supports a gypsum board wall assembly. A 6-inch by 16-gauge track section spans at least two studs and fastens with three number-10 self-tapping sheet metal screws to each stud. A 12-gauge by 3-inch wide by 4-inch long steel strap connects to the track with two number-12 self-tapping sheet metal screws. A bracing wire secures to the steel strap, angled at a maximum of 45 degrees.

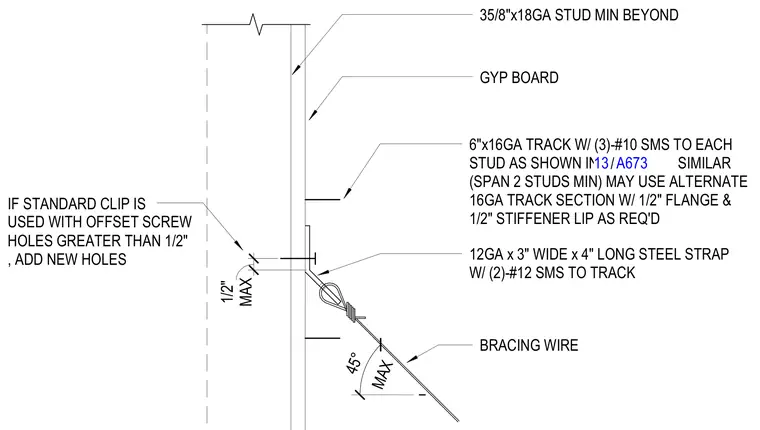

MAX 1/2" MAX 45° IF STANDARD CLIP IS USED WITH OFFSET SCREW HOLES GREATER THAN 1/2" , ADD NEW HOLES 35/8"x18GA STUD MIN BEYOND GYP BOARD 6"x16GA TRACK W/ (3)-#10 SMS TO EACH STUD AS SHOWN IN SIMILAR (SPAN 2 STUDS MIN) MAY USE ALTERNATE 16GA TRACK SECTION W/ 1/2" FLANGE & 1/2" STIFFENER LIP AS REQ'D 12GA x 3" WIDE x 4" LONG STEEL STRAP W/ (2)-#12 SMS TO TRACK BRACING WIRE / 13 A673
