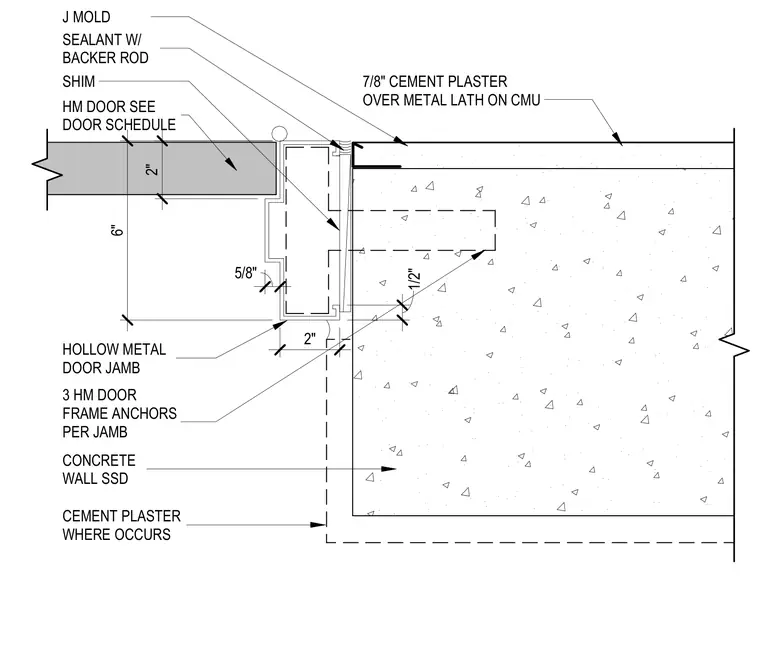

A hollow metal door frame connects to a concrete wall utilizing three frame anchors per jamb, with shims placed at the interface. A J-mold terminates the seven-eighths-inch cement plaster over metal lath on concrete masonry units, backed by sealant and a backer rod. Additional cement plaster is applied where required. The assembly maintains specified clearances of two inches, six inches, five-eighths of an inch, and a half-inch.
HM DOOR SEE DOOR SCHEDULE 3 HM DOOR FRAME ANCHORS PER JAMB 6" 2" 2" 5/8" 1/2" HOLLOW METAL DOOR JAMB CEMENT PLASTER WHERE OCCURS CONCRETE WALL SSD 7/8" CEMENT PLASTER OVER METAL LATH ON CMU J MOLD SHIM SEALANT W/ BACKER ROD
