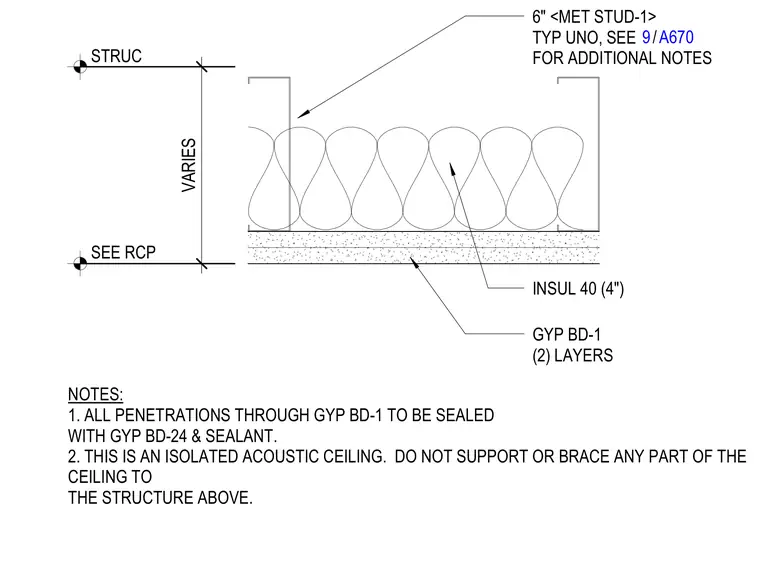

An isolated acoustic ceiling assembly constructed with two layers of gypsum board supported by six-inch metal studs and filled with four inches of insulation. The assembly maintains a variable clearance from the structure above and is left unbraced to prevent sound transmission. All penetrations through the gypsum board layers are sealed with specific acoustic sealant and backing.
SEE RCP STRUC VARIES GYP BD-1 (2) LAYERS INSUL 40 (4") NOTES: 1. ALL PENETRATIONS THROUGH GYP BD-1 TO BE SEALED WITH GYP BD-24 & SEALANT. 2. THIS IS AN ISOLATED ACOUSTIC CEILING. DO NOT SUPPORT OR BRACE ANY PART OF THE CEILING TO THE STRUCTURE ABOVE. 6" <MET STUD-1> TYP UNO, SEE FOR ADDITIONAL NOTES / 9 A670
