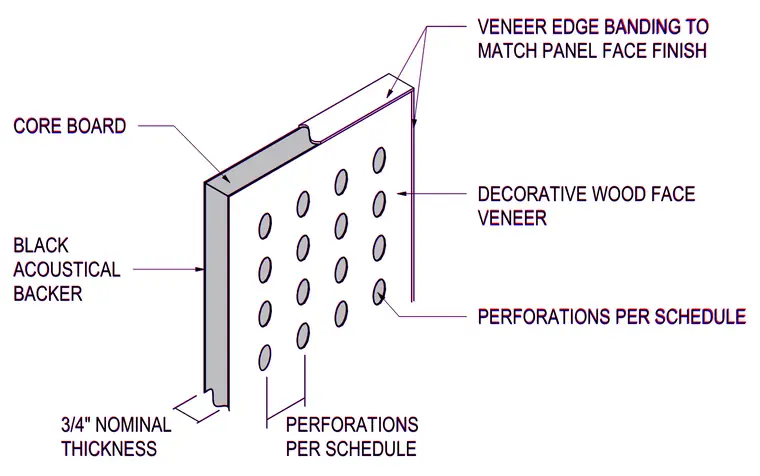

A three-quarter-inch nominal thickness core board is faced with a decorative wood veneer. A black acoustical backer is applied to the rear surface for sound absorption. Veneer edge banding matches the panel face finish along exposed edges. Perforations are provided across the face according to the architectural schedule.
CORE BOARD BLACK ACOUSTICAL BACKER 3/4" NOMINAL THICKNESS VENEER EDGE BANDING TO MATCH PANEL FACE FINISH DECORATIVE WOOD FACE VENEER PERFORATIONS PER SCHEDULE PERFORATIONS PER SCHEDULE CORE BOARD BLACK ACOUSTICAL BACKER 3/4" NOMINAL THICKNESS VENEER EDGE BANDING TO MATCH PANEL FACE FINISH DECORATIVE WOOD FACE VENEER PERFORATIONS PER SCHEDULE PERFORATIONS PER SCHEDULE
