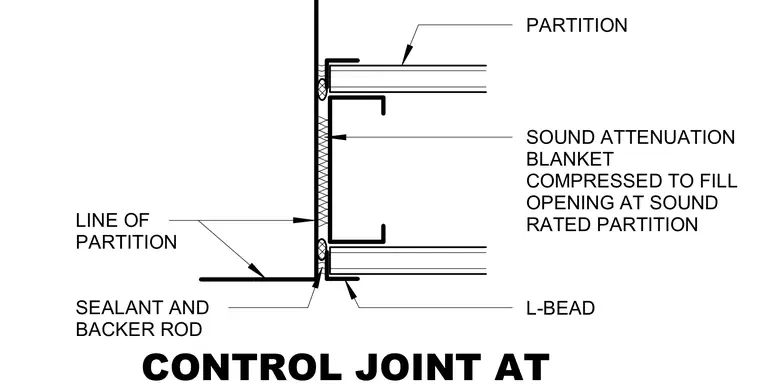

An intersecting partition terminates at a continuous wall assembly with a control joint detail. Sound attenuation blanket is compressed to fill the opening within the stud cavity at the sound rated partition. An L-bead finishes the gypsum board edge at the intersection. Joint sealant and backer rod seal the junction along the line of the partition control joint.
PARTITION SOUND ATTENUATION BLANKET COMPRESSED TO FILL OPENING AT SOUND RATED PARTITION L-BEAD SEALANT AND BACKER ROD LINE OF PARTITION CONTROL JOINT AT
