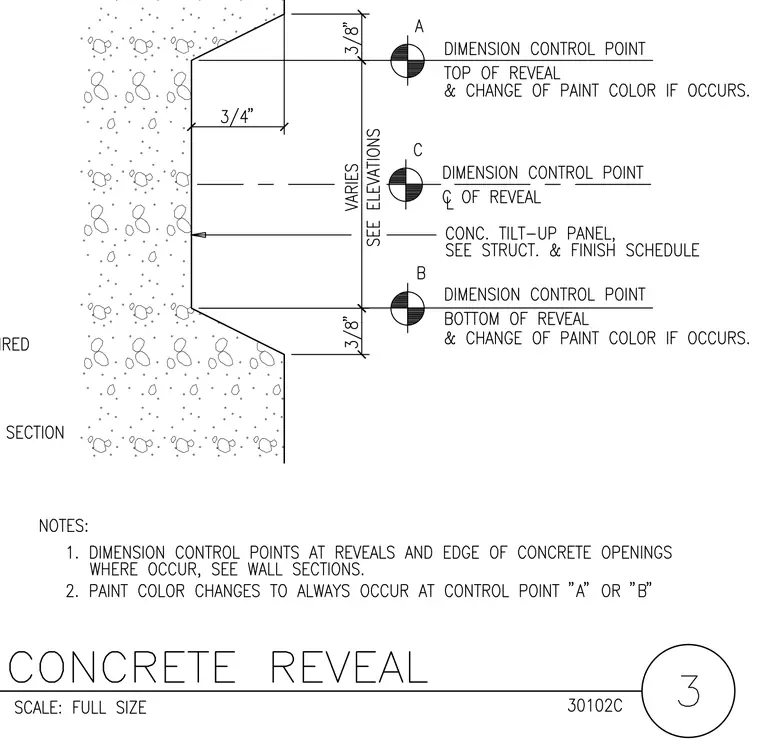

This concrete reveal detail for a tilt-up concrete wall panel features a recessed profile measuring three-quarters of an inch deep with three-eighths of an inch angled chamfers at the top and bottom. Dimension control points are established at the top, center line, and bottom of the reveal for vertical and horizontal alignment. Paint color changes occur at the top or bottom control points as specified in the notes. The overall height of the reveal varies per elevations and is coordinated with structural and finish schedules.
