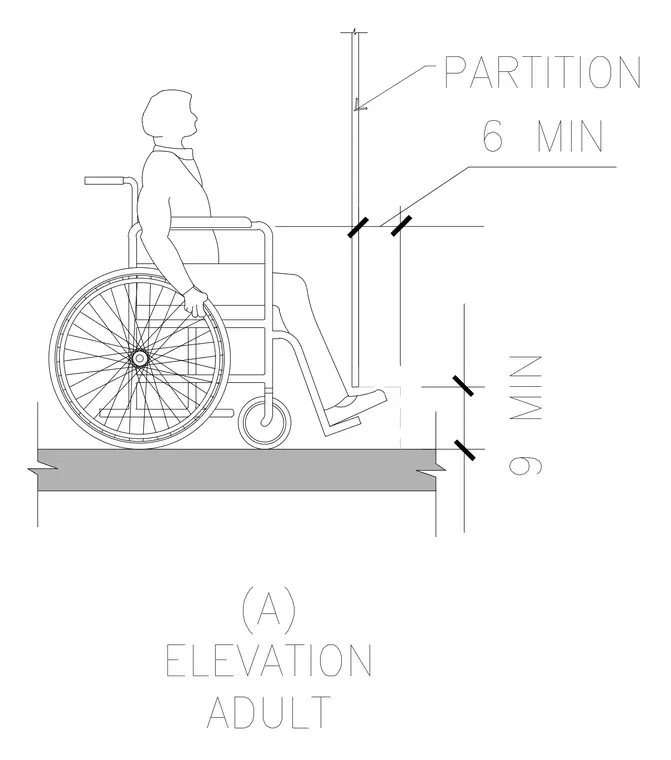

An adult user seated in a wheelchair is positioned adjacent to an interior partition wall, establishing baseline accessibility clearances. Dimension lines indicate a minimum height clearance above the floor and specific vertical tolerances relative to the footrest and armrest. The partition extends vertically with standard clearance callouts for compliance with accessibility standards.
