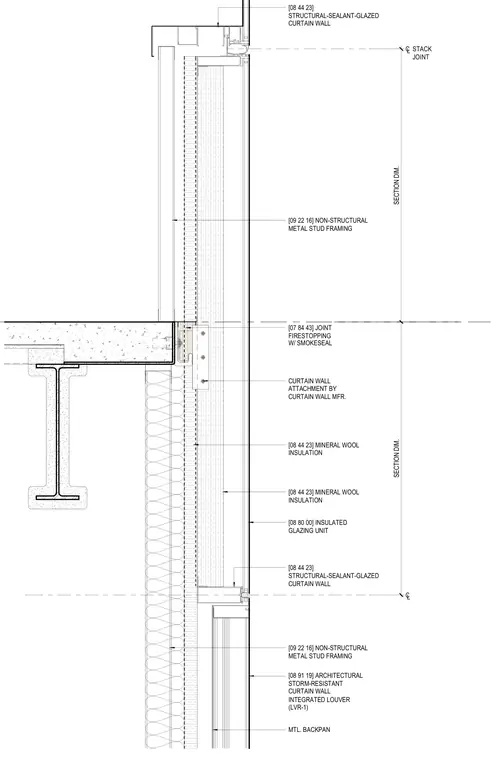

A curtain wall louver head assembly intersects with a concrete floor slab and wide-flange structural steel framing. The structural-sealant-glazed curtain wall integrates an architectural storm-resistant louver and an insulated glazing unit, with a metal backpan assembly. Mineral wool insulation is installed within the cavity, and joint firestopping with a smoke seal is provided at the floor slab edge. Non-structural metal stud framing backs the assembly, and curtain wall attachments are provided by the manufacturer.
SECTION DIM. SECTION DIM. [08 80 00] INSULATED GLAZING UNIT [08 44 23] STRUCTURAL-SEALANT-GLAZED CURTAIN WALL C L STACK JOINT C L [08 44 23] MINERAL WOOL INSULATION [08 44 23] MINERAL WOOL INSULATION [07 84 43] JOINT FIRESTOPPING [09 22 16] NON-STRUCTURAL METAL STUD FRAMING [09 22 16] NON-STRUCTURAL METAL STUD FRAMING MTL. BACKPAN CURTAIN WALL ATTACHMENT BY CURTAIN WALL MFR. W/ SMOKESEAL [08 91 19] ARCHITECTURAL STORM-RESISTANT CURTAIN WALL INTEGRATED LOUVER (LVR-1) [08 44 23] STRUCTURAL-SEALANT-GLAZED CURTAIN WALL
