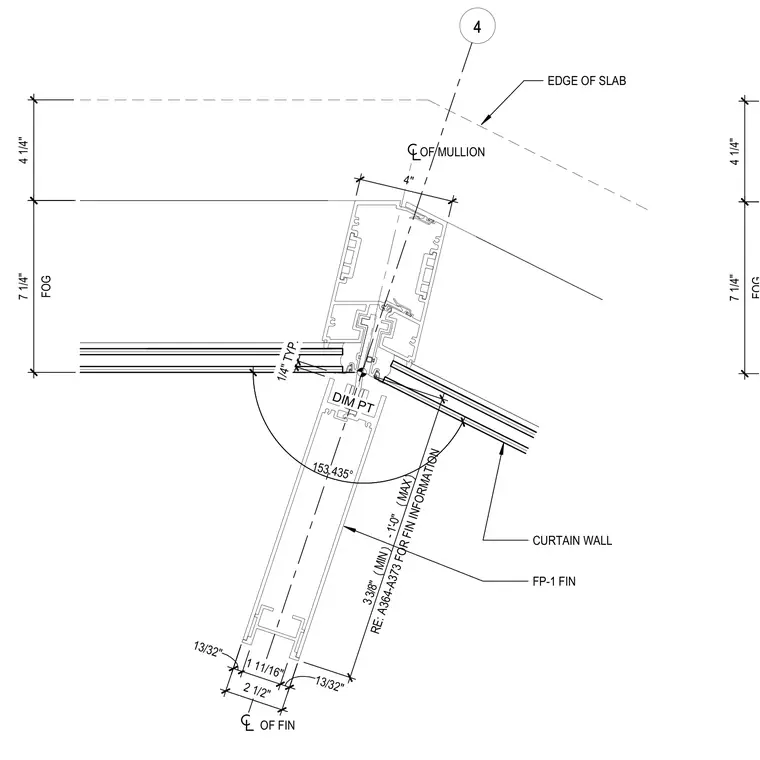

The corner intersection of a curtain wall system establishes the dimension point at the mullion centerline relative to the face of glass and edge of slab. An exterior vertical fin, designated FP-1, is anchored to the mullion profile with a projection ranging from three and three-eighths inches minimum to one foot maximum. Glazing pockets accommodate quarter-inch typical glazing infill with precise dimensional layout offsets for framing alignment. Reference sheets A364 through A373 provide additional fin connection and engineering information.
4 CURTAIN WALL DIM PT OF MULLION OF FIN 4 " EDGE OF SLAB F O G 7 1 / 4 " 1 5 3 . 4 3 5 ° 4 1 / 4 " FP-1 FIN 1 / 4 " T Y P . 1 3 / 3 2 " 1 1 1 / 1 6 " 1 3 / 3 2 " 2 1 / 2 " R E : A 3 6 4 - A 3 7 3 F O R F I N I N F O R M A T I O N 3 3 / 8 " ( M I N ) - 1 ' - 0 " ( M A X ) 7 1 / 4 " 4 1 / 4 "
