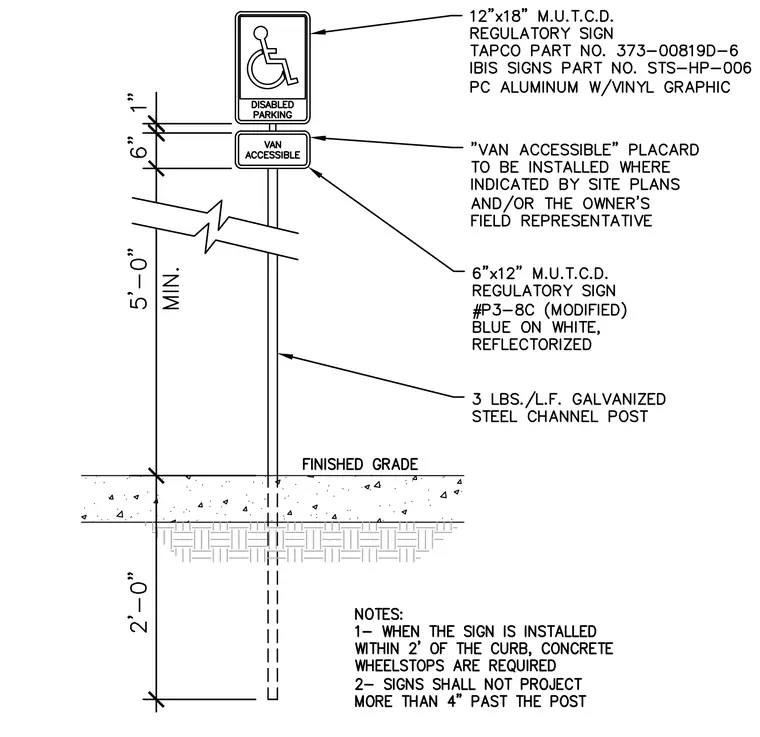

An ADA-compliant handicap parking sign assembly consisting of a 12-inch by 18-inch MUTCD regulatory sign with a vinyl graphic and an optional van accessible placard mounted on a 3 pounds per linear foot galvanized steel channel post. The post embeds two feet below finished grade into concrete pavement over compacted subgrade. Installation requirements specify that concrete wheelstops are required when the sign is positioned within two feet of the curb, and signs must not project more than 4 inches past the post.
12 x18 M.U.T.C.D. REGULATORY SIGN TAPCO PART NO. 373-00819D-6 IBIS SIGNS PART NO. STS-HP-006 PC ALUMINUM W/VINYL GRAPHIC DISABLED PARKING n VAN "VAN ACCESSIBLE” PLACARD TO BE INSTALLED WHERE INDICATED BY SITE PLANS AND/OR THE OWNER’S FIELD REPRESENTATIVE CO ACCESSIBLE O 6”x12” M.U.T.C.D. REGULATORY SIGN #P3—8C (MODIFIED) BLUE ON WHITE, REFLECTORIZED I LO 3 LBS./L.F. GALVANIZED STEEL CHANNEL POST FINISHED GRADE 7T - ' 4 \ < A ■ < A , ■ <r O I NOTES: 1- WHEN THE SIGN IS INSTALLED WITHIN 2’ OF THE CURB, CONCRETE WHEELSTOPS ARE REQUIRED 2- SIGNS SHALL NOT PROJECT MORE THAN 4" PAST THE POST CM U
