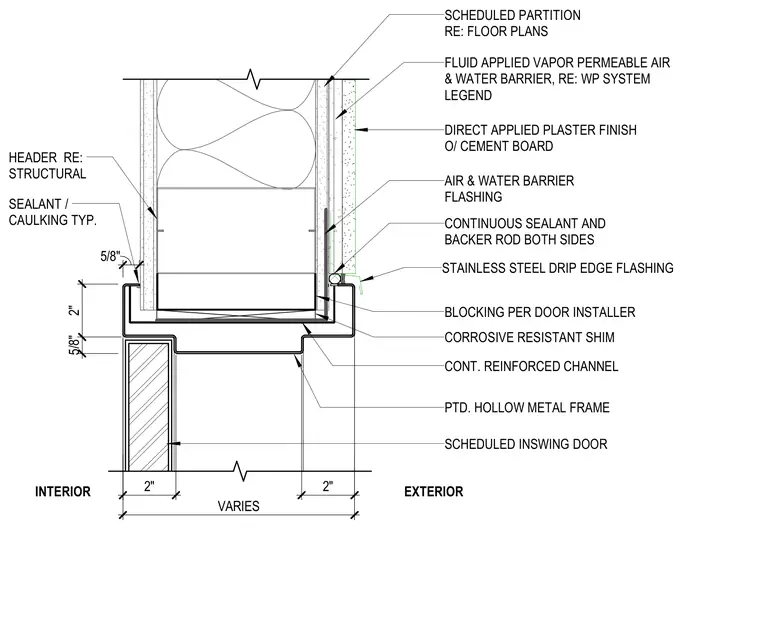

An exterior inswing door head interfaces with a plastered wall assembly over cement board and a fluid-applied air and water barrier. A painted hollow metal frame sits beneath a structural header, shimmed with a continuous corrosive-resistant shim and backed by blocking per the door installer. A stainless steel drip edge flashing integrates with flashing at the head condition, sealed with continuous sealant and backer rod on both sides. A scheduled partition meets the interior side with sealant and caulking typical.
2" VARIES HEADER RE: STRUCTURAL 5/8" 2" SCHEDULED INSWING DOOR 2" SEALANT / CAULKING TYP. PTD. HOLLOW METAL FRAME SCHEDULED PARTITION RE: FLOOR PLANS DIRECT APPLIED PLASTER FINISH O/ CEMENT BOARD FLUID APPLIED VAPOR PERMEABLE AIR & WATER BARRIER, RE: WP SYSTEM LEGEND STAINLESS STEEL DRIP EDGE FLASHING CONTINUOUS SEALANT AND BACKER ROD BOTH SIDES BLOCKING PER DOOR INSTALLER CONT. REINFORCED CHANNEL CORROSIVE RESISTANT SHIM 5/8" EXTERIOR INTERIOR AIR & WATER BARRIER FLASHING
